SSMCI Series 3/4in Tube Male Connector Fitting
SSMCI Series 3/4in Tube Male Connector Fitting
SKU:SSM-be0f68
High-quality male connector fitting for secure and efficient tube connections.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
SSMCI Series 3/4in Tube Male Connector Fitting
$39.99
Quantity: 1
Claim Your Seller Account
SSMCI Series 3/4in Tube Male Connector Fitting
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

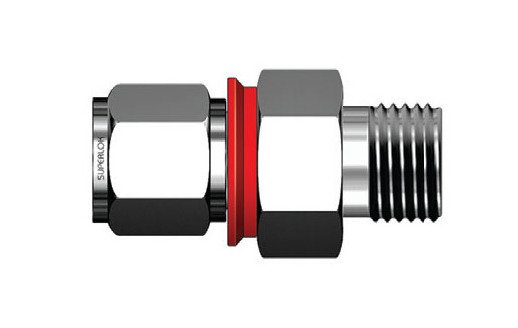

The SSMCI Series 3/4in Tube Male Connector Fitting is designed to connect fractional tubes to SAE/MS straight thread boss effortlessly. It features i-Fitting® components including body, ferrules, nut, and a patented check ring for optimal compression. This innovative design enhances installer safety in high-pressure environments and boosts productivity. Crafted from high-quality materials like Alloy 625, Stainless Steel, and more, this fitting ensures durability and reliability in industrial applications.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

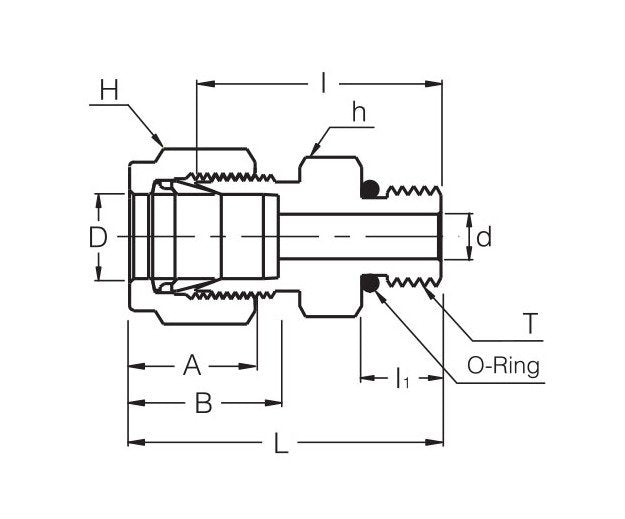

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
24.38 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension I
35.81 mm
Technical Specs Dimension I1
11.17 mm
Technical Specs Dimension L
45.97 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
10.66 mm
Technical Specs O Ring Uniform Size Number
3-908
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Straight Thread T U
3/4-16 mm
Technical Specs Tube Outside Diameter D
3/4 in
Technical Specs Width Across Flat H
1-1/8 in
