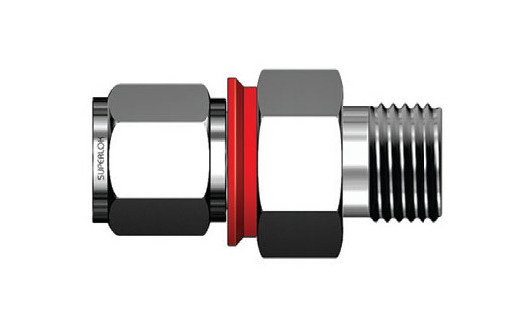

The SSMCI Series 1 Inch Tube OD Male Connector Fitting is expertly designed to connect fractional tubes to SAE/MS straight thread boss fittings with precision and reliability. Crafted from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this fitting ensures durability and resistance in various environments. Featuring i-Fitting® components for enhanced safety and productivity, the check ring acts as a gap gauge, optimizing compression and preventing over/under-tightening. With an innovative patented design by BMT, this fitting is essential for valve connections in high-pressure and chemical applications.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

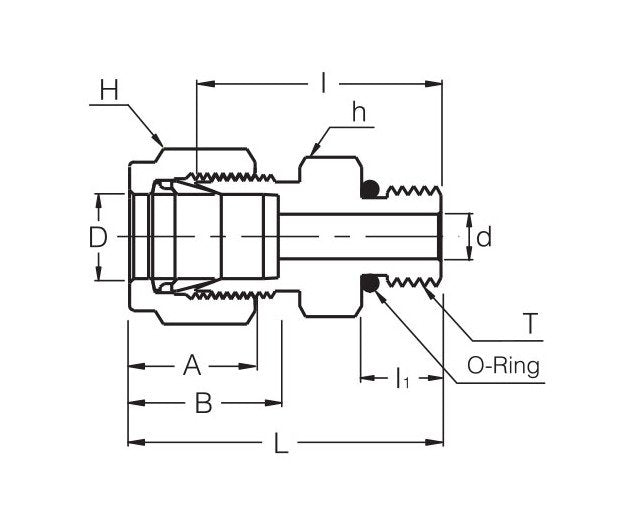

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
31.24 mm
Technical Specs Dimension B
26.41 mm
Technical Specs Dimension I
42.16 mm
Technical Specs Dimension I1
14.98 mm
Technical Specs Dimension L
54.35 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
22.35 mm
Technical Specs O Ring Uniform Size Number
3-916
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Straight Thread T U
1-5/16-12 mm
Technical Specs Tube Outside Diameter D
1 in
Technical Specs Width Across Flat H
1-1/2 in
