SSMCI Series Male Connector Fitting 25mm D, 41.1mm I, 53.3mm L

Name: SSMCI Series Male Connector Fitting 25mm D, 41.1mm I, 53.3mm L
Brand: Superlok-Mako Products LLC
SKU: SSM-f30186
Price: 49.99 USD
Availability: OutOfStock

SKU:SSM-f30186

Securely connect Metric Tubes to SAE/MS Straight Thread Boss with the SSMCI Series Male Connector Fitting, ensuring industry-leading safety and productivity.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

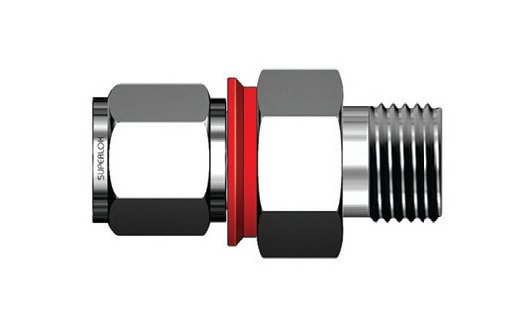

The SSMCI Series Male Connector Fitting features a 25mm Tube Outside Diameter (D), 41.1mm Dimension I, and 53.3mm Dimension L, connecting Metric Tubes to SAE/MS Straight Thread Boss. Crafted from Alloy 625, Alloy 825, Alloy C-276, Aluminum, Brass, Carbon Steel, Monel Alloy 400, or Stainless Steel, this male connector ensures a secure fit. With industry-changing patented design by BMT, it includes i-Fitting® components for perfect compression, installer safety, and increased productivity in high-pressure environments.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

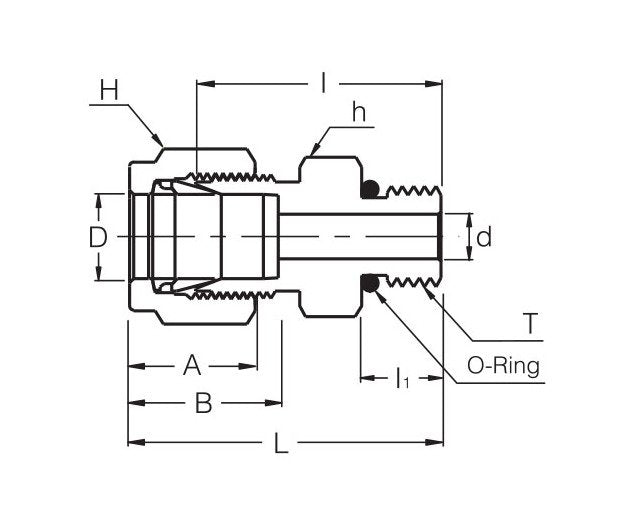

Technical Specs Connection Type

Male

Technical Specs Dimension A

31.2 mm

Technical Specs Dimension B

26.4 mm

Technical Specs Dimension I

41.1 mm

Technical Specs Dimension I1

15.0 mm

Technical Specs Dimension L

53.3 mm

Technical Specs Material

Technical Specs Minimum Dimension D

16.7 mm

Technical Specs O Ring Uniform Size Number

3-912

Technical Specs Standard Size

6 to 25 mm

Technical Specs Straight Thread T U

1-1/16-12 mm

Technical Specs Tube Outside Diameter D

25 mm

Technical Specs Width Across Flat H

38.1 mm
