SSP Bulkhead Tube Stub Adapter - Griplok, Alloy 400, 1/4 in
SSP Bulkhead Tube Stub Adapter - Griplok, Alloy 400, 1/4 in
SKU:SSP-685a3a
SSP Bulkhead Tube Stub Adapter - Griplok: Reliable Alloy 400 fitting for industrial applications. Bulkhead design with Griplok technology ensures stability under pressure.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SSP Bulkhead Tube Stub Adapter - Griplok, Alloy 400, 1/4 in
$24.99
Quantity: 1
Claim Your Seller Account
SSP Bulkhead Tube Stub Adapter - Griplok, Alloy 400, 1/4 in
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

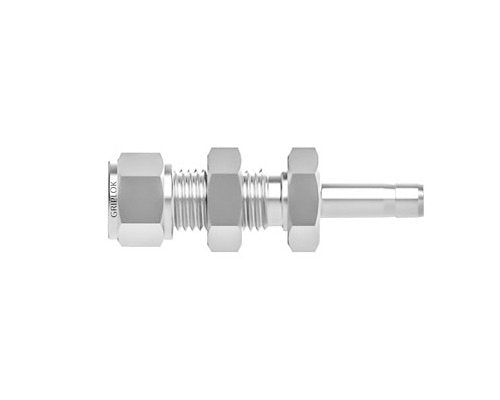

The SSP Corp. Bulkhead Tube Stub Adapter - Griplok is a precision-engineered tube fitting designed for industrial applications requiring a secure, leak-free connection. Made from durable Alloy 400, this adapter features a 1/4 inch Tube Fitting x 1/4 inch Tube Stub configuration, ensuring a tight seal. With its bulkhead design and Griplok technology, it provides enhanced stability even in high-pressure environments. The adapter meets strict industry standards for quality, reliability, and performance, making it ideal for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

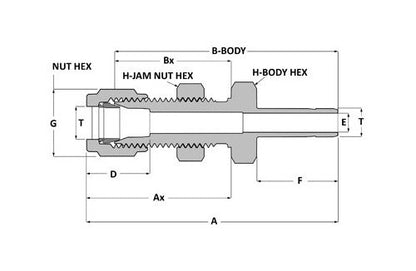

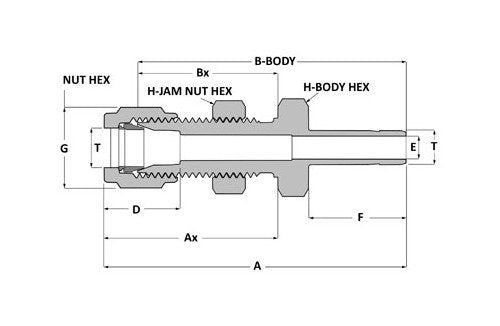

Dimensions A
2.24 in
Dimensions Ax
1.32 in
Dimensions B
1.91 in
Dimensions Bx
1.03 in
Dimensions D
0.64 in
Dimensions E
0.11 in
Dimensions F
0.62 in
Dimensions G
9/16 in
Dimensions H
5/8 in
Dimensions Maximum Panel Thickness
0.40 in
Dimensions Panel Hole Drill Size
29/64 in
Dimensions T
1/4 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Tube Stub
Specifications End Connections
TF x Tube Stub
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
