SSP Corp. 45 Degree Griplok Male Elbow Tube Fitting
SSP Corp. 45 Degree Griplok Male Elbow Tube Fitting
SKU:SSP-983ab7
Premium 45° male elbow tube fitting for reliable connections in instrumentation applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SSP Corp. 45 Degree Griplok Male Elbow Tube Fitting
$29.99
Quantity: 1
Claim Your Seller Account
SSP Corp. 45 Degree Griplok Male Elbow Tube Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

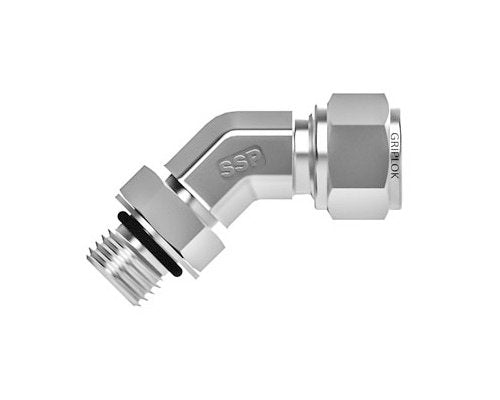

The SSP Corp. 45 Degree Griplok Male Elbow Tube Fitting is constructed with high-quality 316 SS material, ensuring durability and corrosion resistance. With a 1/2 inch Tube Fitting on one end and a 3/4 inch Male SAE on the other, this elbow fitting is versatile and reliable. The Griplok series features a convenient handle design for easy installation and maintenance, meeting the stringent requirements of instrumentation tube fittings.
Ready to Grow Without Cash Flow Constraints?

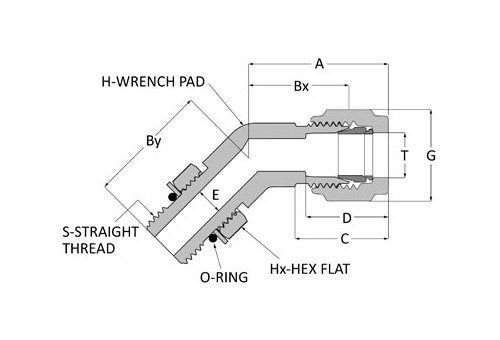

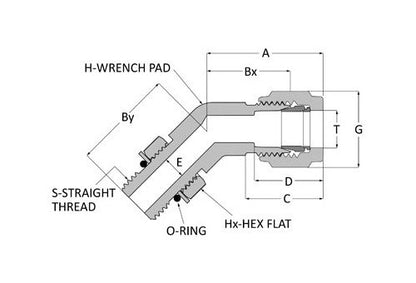

Product Specifications
Dimensions A
1.26 in
Dimensions Bx
0.86 in
Dimensions By
1.27 in
Dimensions C
0.86 in
Dimensions D
0.90 in
Dimensions E
0.41 in
Dimensions G
7/8 in
Dimensions H
13/16 in
Dimensions Hx
7/8 in
Dimensions S
3/4-16
Dimensions T
1/2 in
Specifications As568 O Ring Uniform Size Number
-908
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/2 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/4 in
Specifications Connection 2 Type
Male SAE
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
3
Specifications Shape
Elbow
Category 6
Griplok® Tube Fittings
