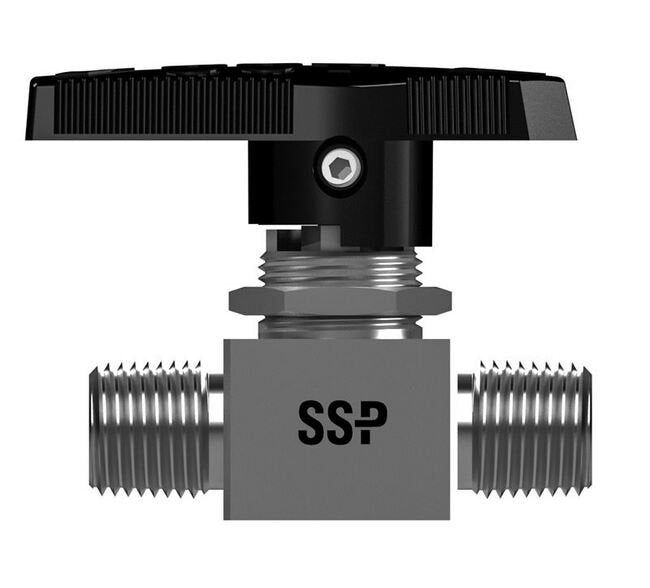

SSP Corp. Alloy 400 2-way Ball Valves, 1/4-18 MNPT x 1/4-18 MNPT
SSP Corp. Alloy 400 2-way Ball Valves, 1/4-18 MNPT x 1/4-18 MNPT
SKU:SSP-38e339
SSP Corp. Alloy 400 2-way Ball Valves with Cv 1.20, Nylon handle, and locking hardware for high-pressure industrial use.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SSP Corp. Alloy 400 2-way Ball Valves, 1/4-18 MNPT x 1/4-18 MNPT
$89.99
Quantity: 1
Claim Your Seller Account
SSP Corp. Alloy 400 2-way Ball Valves, 1/4-18 MNPT x 1/4-18 MNPT
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial fluid control system with SSP Corp. Alloy 400 Encapsulated 2-way Ball Valves. These valves feature a Cv of 1.20, modified PTFE packing, and a durable blue Nylon handle with stainless steel insert. With working pressure up to 3000 psig, temperature tolerance from -65 to 300ºF, and a locking hardware feature, these valves ensure reliable performance and ease of maintenance. Compliant with federal standards, these valves are ideal for demanding industrial applications.
Ready to Grow Without Cash Flow Constraints?

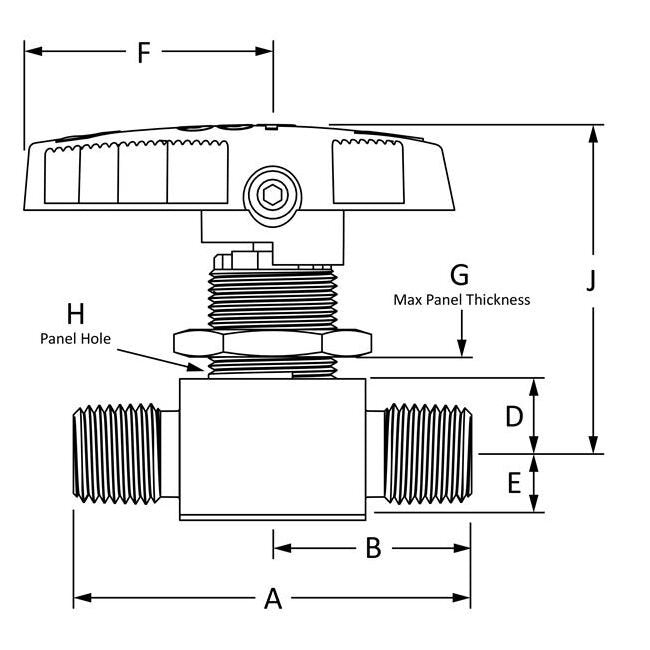

Product Specifications
Dimensions A
2.00 in | 50.8 mm
Dimensions B
1.00 in | 25.4 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0.38 in | 9.7 mm
Dimensions F
1.43 in | 36.3 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.8 mm

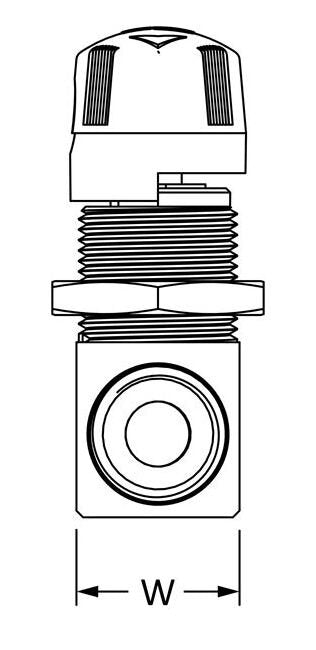

Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy 400
Specifications Brand Series
EB Series
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
MNPT
Specifications Connection 2 Size
1/4-18
Specifications Connection 2 Type
MNPT
Specifications Cv
1.20
Specifications Handle Color
Blue
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Shape
2-way
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Working Pressure
3000 psig | 206 bar
