SSP Corp. Alloy 400 Encapsulated 3-Way Ball Valve 1/4" EB Series
SSP Corp. Alloy 400 Encapsulated 3-Way Ball Valve 1/4" EB Series
SKU:SSP-de2997
Enhance fluid control with SSP Corp. Alloy 400 3-Way Ball Valve - precise, durable, and compliant.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SSP Corp. Alloy 400 Encapsulated 3-Way Ball Valve 1/4" EB Series
$89.99
Quantity: 1
Claim Your Seller Account
SSP Corp. Alloy 400 Encapsulated 3-Way Ball Valve 1/4" EB Series
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid control system with the SSP Corp. Alloy 400 Encapsulated 3-Way Ball Valve from the EB Series. This high-quality valve features Unilok Tube Fittings, Modified PTFE Packing, and a durable green Nylon handle with a stainless steel insert. With a Cv of 0.75 and a temperature range of -65 to 300°F, this valve ensures precise flow control and reliability in diverse environments. Its compliance with industry standards makes it ideal for institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

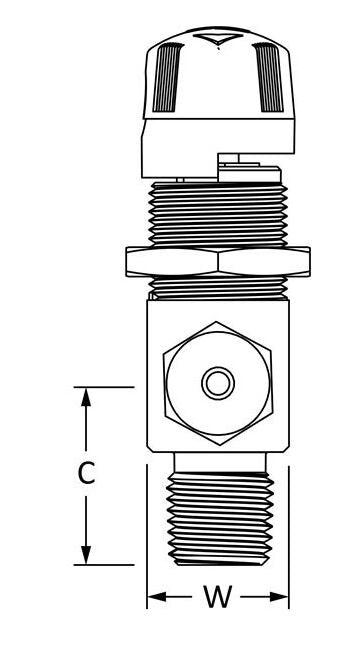

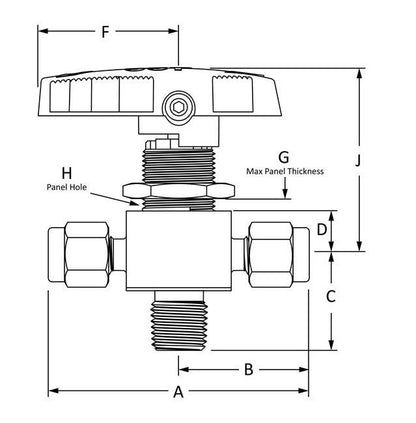

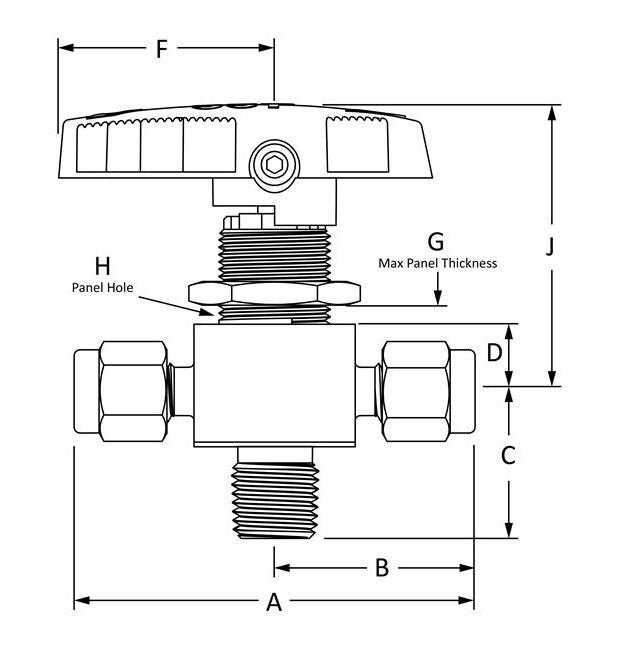

Dimensions A
2.39 in | 60.7 mm
Dimensions B
1.2 in | 30.5 mm
Dimensions C
1.03 in | 26.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0 in
Dimensions F
1.43 in | 36.3 mm
Dimensions G
0.188 in | 4.8 mm
Dimensions H
0.78 in | 19.8 mm
Dimensions J
1.53 in
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy 400
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Unilok Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Unilok Tube Fitting
Specifications Connection 3 Size
1/4 in
Specifications Connection 3 Type
MNPT
Specifications Cv
0.75
Specifications Flow Pattern
XQS
Specifications Handle Color
Green
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Ssp Pn
43GXU4U44PM-M-GR
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
