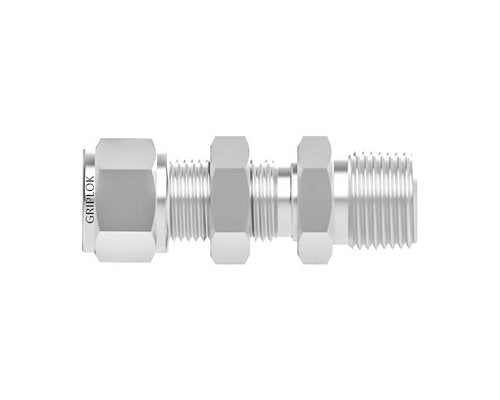

SSP Corp. Bulkhead Male Connector Griplok 1/4 in Tube Fitting x 1/8-27 MNPT Alloy 400
SSP Corp. Bulkhead Male Connector Griplok 1/4 in Tube Fitting x 1/8-27 MNPT Alloy 400
SKU:SSP-a97514
Precision-engineered Alloy 400 Bulkhead Male Connector - Reliable, Leak-free Connection for Industrial Use
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SSP Corp. Bulkhead Male Connector Griplok 1/4 in Tube Fitting x 1/8-27 MNPT Alloy 400
$24.99
Quantity: 1
Claim Your Seller Account
SSP Corp. Bulkhead Male Connector Griplok 1/4 in Tube Fitting x 1/8-27 MNPT Alloy 400
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SSP Corp. Bulkhead Male Connector Griplok is precision-engineered to provide reliable connections in demanding environments. Made from high-quality Alloy 400, this fitting ensures excellent corrosion resistance and durability. With a 1/4 inch Tube Fitting on one end and a 1/8-27 MNPT on the other, it offers a secure and leak-free connection. The Griplok series design guarantees ease of installation and maintenance, making it ideal for industrial applications where performance and longevity are crucial.

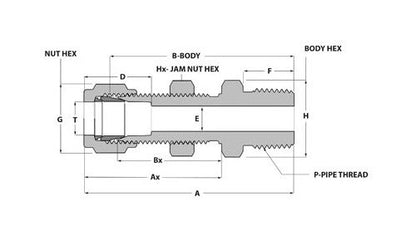

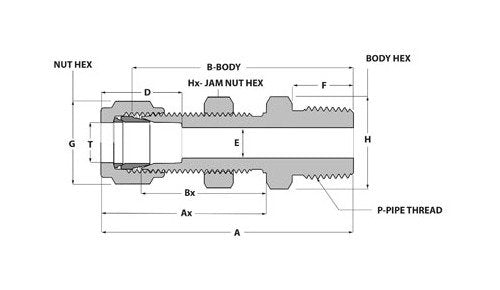

Product Specifications
Dimensions A
1.99 in
Dimensions Ax
1.32 in
Dimensions B
1.66 in
Dimensions Bx
1.03 in
Dimensions D
0.64 in
Dimensions E
0.17 in
Dimensions F
0.38 in
Dimensions G
9/16 in
Dimensions H
5/8 in
Dimensions Hx
5/8 in
Dimensions Maximum Panel Thickness
0.40 in
Dimensions P
1/8 in
Dimensions Panel Hole Drill Size
29/64 in
Dimensions T
1/4 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
