SSP Corp. Bulkhead Male Connector - Griplok, Brass, 1/8 Tube Fitting x 1/8-27 MNPT
SSP Corp. Bulkhead Male Connector - Griplok, Brass, 1/8 Tube Fitting x 1/8-27 MNPT
SKU:SSP-8534b1
High-quality Griplok Bulkhead Male Connector for precise 1/8 Tube Fitting x 1/8-27 MNPT connections in industrial applications.
Regular price
$14.24
Regular price
Sale price
$14.24
Unit price
per
Initiate Order
SSP Corp. Bulkhead Male Connector - Griplok, Brass, 1/8 Tube Fitting x 1/8-27 MNPT
$14.24
Quantity: 1
Claim Your Seller Account
SSP Corp. Bulkhead Male Connector - Griplok, Brass, 1/8 Tube Fitting x 1/8-27 MNPT
$14.24
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SSP Corp. Bulkhead Male Connector - Griplok is a high-quality brass fitting designed for reliable instrumentation tube connections. With a 1/8 inch Tube Fitting and 1/8-27 MNPT, this Griplok connector ensures a secure and leak-free straight connection. Its robust construction and unique Bulkhead design make it ideal for demanding industrial applications, providing durability and efficiency. Meet your precise fitting needs with the trusted Griplok series, offering exceptional performance and longevity.

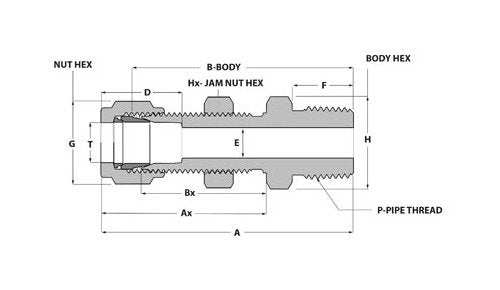

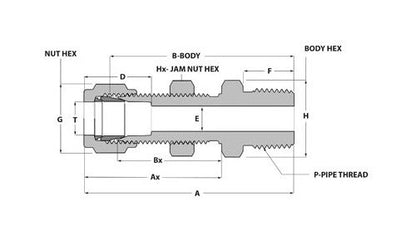

Product Specifications
Dimensions A
1.89 in
Dimensions Ax
1.23 in
Dimensions B
1.57 in
Dimensions Bx
0.97 in
Dimensions D
0.56 in
Dimensions E
0.09 in
Dimensions F
0.38 in
Dimensions G
7/16 in
Dimensions H
1/2 in
Dimensions Hx
1/2 in
Dimensions Maximum Panel Thickness
0.50 in
Dimensions P
1/8 in
Dimensions Panel Hole Drill Size
21/64 in
Dimensions T
1/8 in
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
14.24 USD
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
