SSP Corp. Bulkhead Tube Stub Adapter - Griplok 1/4 in x 1/4 in 316 SS
SSP Corp. Bulkhead Tube Stub Adapter - Griplok 1/4 in x 1/4 in 316 SS
SKU:SSP-4383cc
Premium 316 SS Bulkhead Tube Stub Adapter, 1/4 TF x 1/4 Tube Stub, Leak-free connection, Precision dimensions
Regular price
$22.02
Regular price
Sale price
$22.02
Unit price
per
Initiate Order
SSP Corp. Bulkhead Tube Stub Adapter - Griplok 1/4 in x 1/4 in 316 SS
$22.02
Quantity: 1
Claim Your Seller Account
SSP Corp. Bulkhead Tube Stub Adapter - Griplok 1/4 in x 1/4 in 316 SS
$22.02
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

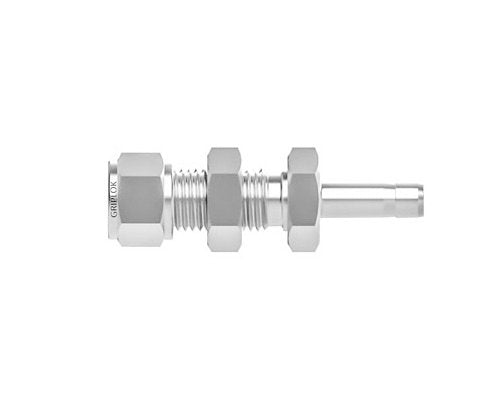

The SSP Corp. Griplok Bulkhead Tube Stub Adapter is a premium quality fitting designed for both consumer and institutional use. Constructed from durable 316 stainless steel, this adapter features a 1/4-inch Tube Fitting on one end and a 1/4-inch Tube Stub on the other. With a specialty Bulkhead design, this adapter ensures secure and leak-free connections. The dimensions, including maximum panel thickness and panel hole drill size, meet industry standards for precise installation. Ideal for instrumentation applications, this straight adapter offers reliability and longevity in fluid systems.
Product Specifications

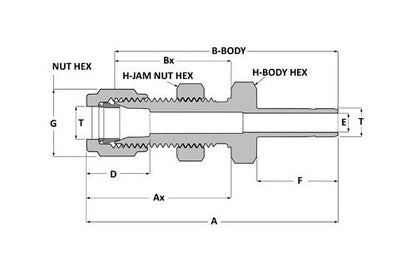

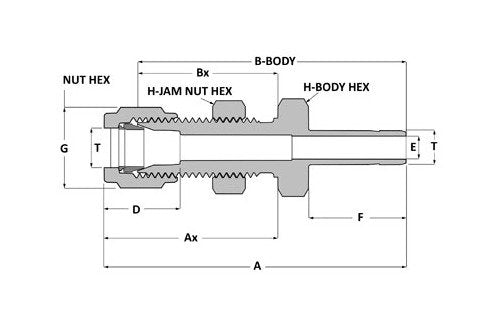

Dimensions A
2.24 in
Dimensions Ax
1.32 in
Dimensions B
1.91 in
Dimensions Bx
1.03 in
Dimensions D
0.64 in
Dimensions E
0.11 in
Dimensions F
0.62 in
Dimensions G
9/16 in
Dimensions H
5/8 in
Dimensions Maximum Panel Thickness
0.40 in
Dimensions Panel Hole Drill Size
29/64 in
Dimensions T
1/4 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Tube Stub
Specifications End Connections
TF x Tube Stub
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
22.02 USD
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
