SSP Corp. EB Series 1/4-18 MNPT x 1/4-18 MNPT Encapsulated Ball Valves

SSP Corp. EB Series 1/4-18 MNPT x 1/4-18 MNPT Encapsulated Ball Valves

SSP-582dd2

SSP Corp. EB Series Brass 2-way Ball Valves with 1/4-18 MNPT Connections, Cv: 1.20, Yellow Nylon Handle

$45.99
$45.99
Sale

Initiate Order

SSP Corp. EB Series 1/4-18 MNPT x 1/4-18 MNPT Encapsulated Ball Valves

SSP Corp. EB Series 1/4-18 MNPT x 1/4-18 MNPT Encapsulated Ball Valves

$45.99

Quantity: 1

Claim Your Seller Account

SSP Corp. EB Series 1/4-18 MNPT x 1/4-18 MNPT Encapsulated Ball Valves

SSP Corp. EB Series 1/4-18 MNPT x 1/4-18 MNPT Encapsulated Ball Valves

$45.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The SSP Corp. EB Series 2-way Ball Valves are crafted from durable Brass with a Cv of 1.20, ensuring reliable performance in fluid control applications. These valves feature a modified PTFE packing and a yellow Nylon handle with a Stainless Steel insert for enhanced durability. With a 3000 psig working pressure and a temperature range of -65 to 300°F, these valves offer exceptional versatility. Precision-engineered with dimensions meeting industry standards, these valves are ideal for institutional and government procurement needs.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

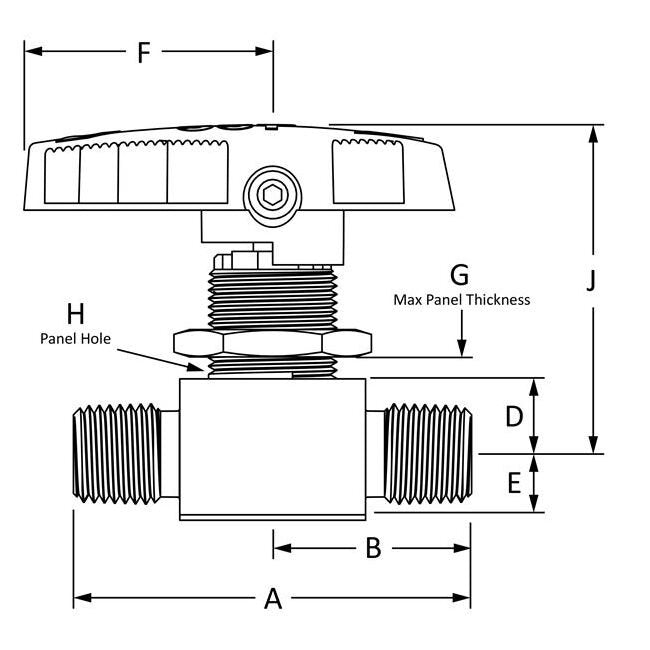

Dimensions A
2.00 in | 50.8 mm
Dimensions B
1.00 in | 25.4 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0.38 in | 9.7 mm
Dimensions F
1.43 in | 36.3 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.8 mm

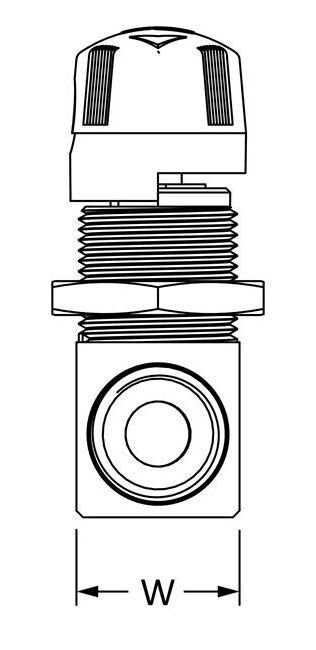

Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Brass
Specifications Brand Series
EB Series
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
MNPT
Specifications Connection 2 Size
1/4-18
Specifications Connection 2 Type
MNPT
Specifications Cv
1.20
Specifications Handle Color
Yellow
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
2
Specifications Shape
2-way
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Working Pressure
3000 psig | 206 bar
