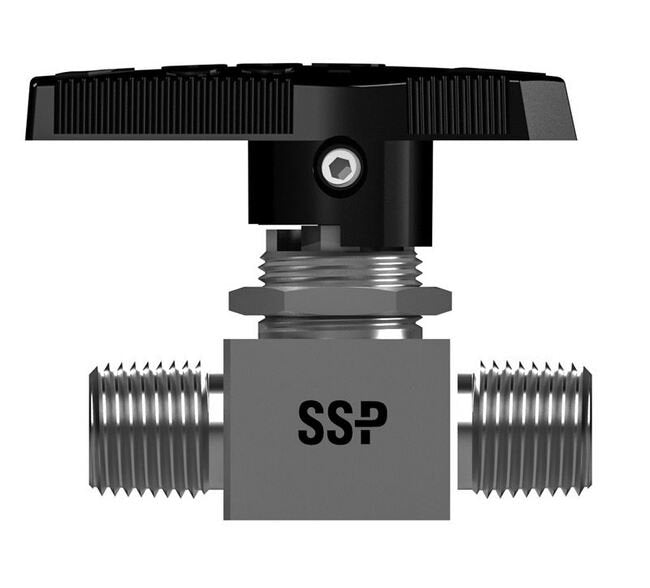

SSP Corp. EB Series 2-way Ball Valves
SSP Corp. EB Series 2-way Ball Valves
SKU:SSP-210701
Enhance fluid systems w/ SSP Corp. EB Series 2-way Ball Valves - 316 SS, 1/4-18 MNPT, Cv: 1.20, Locking Hardware, -65 to 300°F
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SSP Corp. EB Series 2-way Ball Valves
$89.99
Quantity: 1
Claim Your Seller Account
SSP Corp. EB Series 2-way Ball Valves
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid systems with SSP Corp. EB Series 2-way Ball Valves. Made of 316 SS, these valves feature 1/4-18 MNPT connections, a Cv of 1.20, and a modified PTFE packing for leak-free performance. The black nylon handle with a stainless steel insert ensures durability, while the locking hardware adds security. Operating at up to 3000 psig and -65 to 300°F, these valves meet rigorous industry standards for reliability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

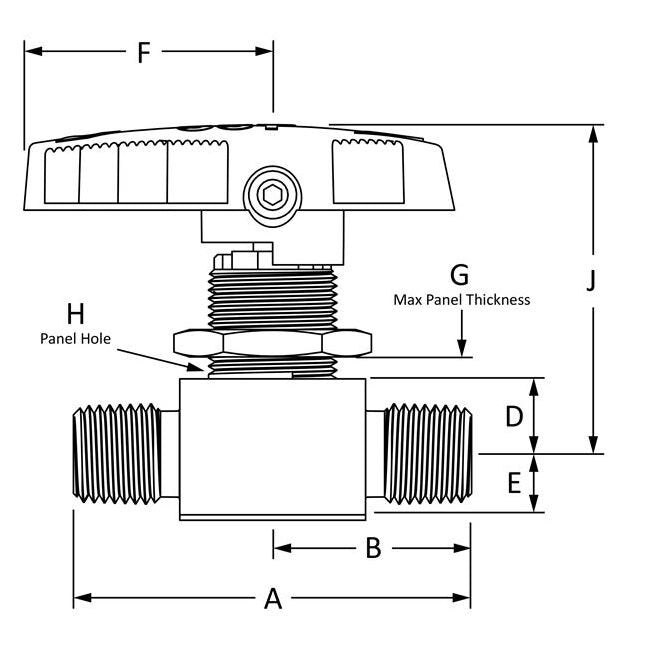

Dimensions A
2.00 in | 50.8 mm
Dimensions B
1.00 in | 25.4 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0.38 in | 9.7 mm
Dimensions F
1.43 in | 36.3 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.8 mm

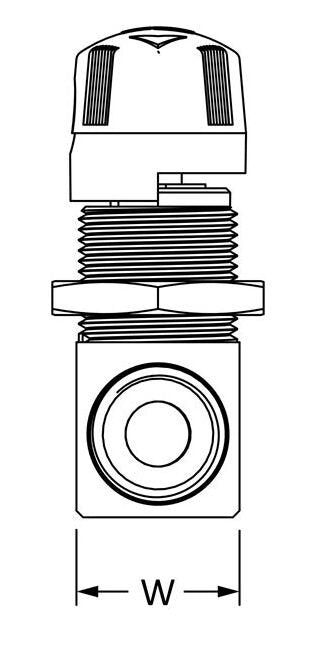

Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
316 SS
Specifications Brand Series
EB Series
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
MNPT
Specifications Connection 2 Size
1/4-18
Specifications Connection 2 Type
MNPT
Specifications Cv
1.20
Specifications Handle Color
Black
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
2
Specifications Shape
2-way
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Working Pressure
3000 psig | 206 bar
