SSP Corp. EB Series 2-Way Encapsulated Ball Valves - Alloy 400, 3/8in Female BSPT

SSP Corp. EB Series 2-Way Encapsulated Ball Valves - Alloy 400, 3/8in Female BSPT

SSP-3e1b2d

Enhance fluid control with SSP Corp. EB Series 2-Way Ball Valves - Alloy 400, 3/8in Female BSPT. Reliable, durable, and precise.

$49.99
$49.99
Sale

Initiate Order

SSP Corp. EB Series 2-Way Encapsulated Ball Valves - Alloy 400, 3/8in Female BSPT

SSP Corp. EB Series 2-Way Encapsulated Ball Valves - Alloy 400, 3/8in Female BSPT

$49.99

Quantity: 1

Claim Your Seller Account

SSP Corp. EB Series 2-Way Encapsulated Ball Valves - Alloy 400, 3/8in Female BSPT

SSP Corp. EB Series 2-Way Encapsulated Ball Valves - Alloy 400, 3/8in Female BSPT

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

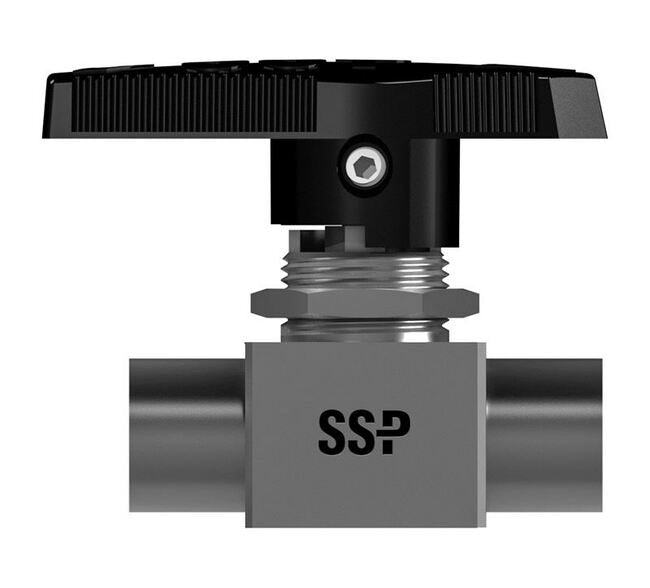

Upgrade your fluid control systems with SSP Corp. EB Series 2-way Ball Valves. These valves feature an Alloy 400 body, 3/8in Female BSPT connections, and a Cv of 2.6 for precise flow control. The modified PTFE packing ensures reliability, while the yellow Nylon handle with a stainless steel insert offers durability. With a working pressure of 2500 psig and a temperature range from -65 to 150 ºF, these valves are ideal for industrial applications requiring high performance and resilience.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

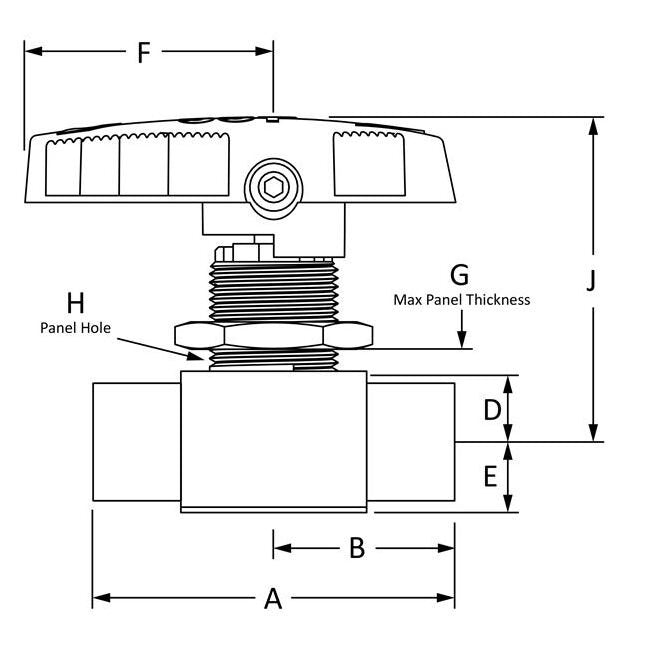

Dimensions A
2.50 in | 63.5 mm
Dimensions B
1.25 in | 31.8 mm
Dimensions D
0.56 in | 14.2 mm
Dimensions E
0.56 in | 14.2 mm
Dimensions F
1.86 in | 47.2 mm
Dimensions G
3/8 in | 9.5 mm
Dimensions H
1 1/8 in | 28.6 mm
Dimensions J
2.1 in | 53.3 mm

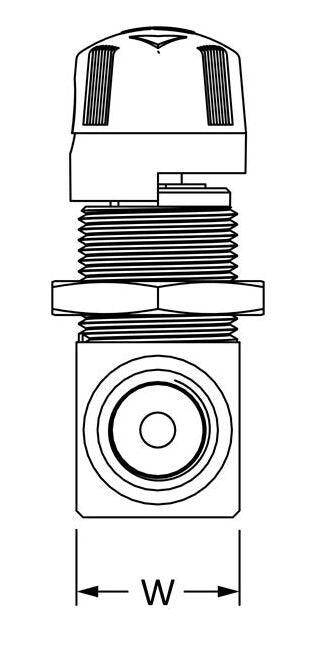

Dimensions W
1.12 in
Specifications Actuation Type
.
Specifications Body Material
Alloy 400
Specifications Brand Series
EB Series
Specifications Connection 1 Size
3/8 in
Specifications Connection 1 Type
Female BSPT
Specifications Connection 2 Size
3/8 in
Specifications Connection 2 Type
Female BSPT
Specifications Cv
2.6
Specifications Handle Color
Yellow
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.281 in | 7.1374 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Shape
2-way
Specifications Temperature
-65 to 150 ºF | -53 to 65 ºC
Specifications Working Pressure
2500 psig | 172 bar
