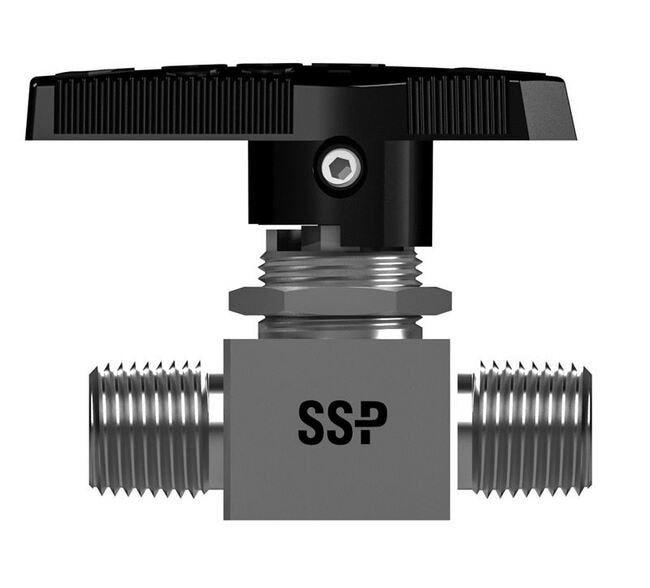

SSP Corp. EB Series Alloy 400 2-Way Ball Valves

SSP Corp. EB Series Alloy 400 2-Way Ball Valves

SSP-88b711

SSP Corp. EB Series Alloy 400 2-way Ball Valves, 1/4-18 MNPT, Cv: 1.20, Modified PTFE Packing, 3000 psig, -65 to 300°F

$129.99
$129.99
Sale

Initiate Order

SSP Corp. EB Series Alloy 400 2-Way Ball Valves

SSP Corp. EB Series Alloy 400 2-Way Ball Valves

$129.99

Quantity: 1

Claim Your Seller Account

SSP Corp. EB Series Alloy 400 2-Way Ball Valves

SSP Corp. EB Series Alloy 400 2-Way Ball Valves

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Enhance your fluid control system with SSP Corp. EB Series Alloy 400 2-way ball valves. These valves feature Alloy 400 construction for durability, with 1/4-18 MNPT connections, a Cv of 1.20, and modified PTFE packing. The black nylon handle with stainless steel insert ensures reliable operation, while the locking hardware provides added security. With a working pressure of 3000 psig and a temperature range of -65 to 300°F, these valves are suitable for a wide range of applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

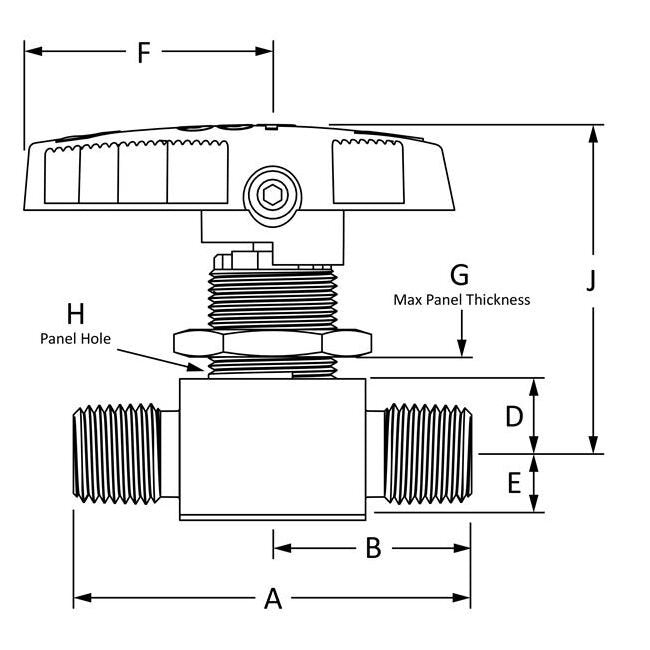

Dimensions A
2.00 in | 50.8 mm
Dimensions B
1.00 in | 25.4 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0.38 in | 9.7 mm
Dimensions F
1.43 in | 36.3 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.8 mm

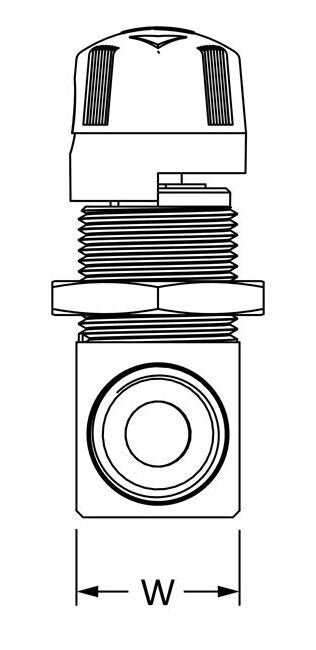

Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy 400
Specifications Brand Series
EB Series
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
MNPT
Specifications Connection 2 Size
1/4-18
Specifications Connection 2 Type
MNPT
Specifications Cv
1.20
Specifications Handle Color
Black
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Shape
2-way
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Working Pressure
3000 psig | 206 bar
