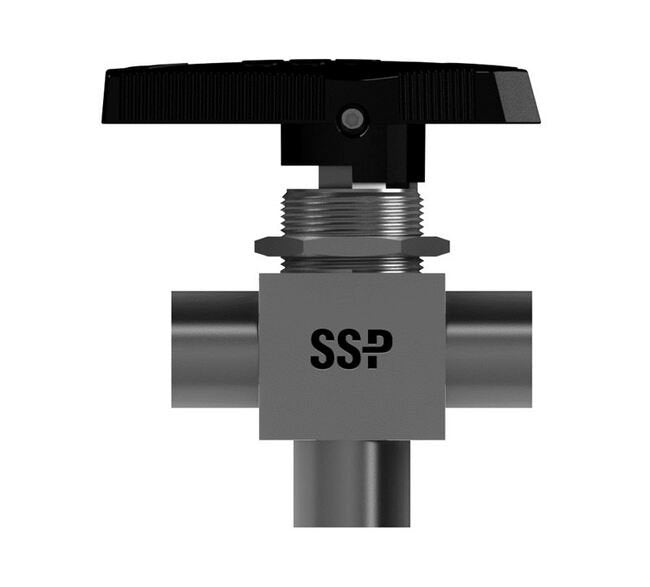

SSP Corp. EB Series Alloy 400 Encapsulated 3-Way Ball Valves
SSP Corp. EB Series Alloy 400 Encapsulated 3-Way Ball Valves
SKU:SSP-21ec37
Enhance fluid control systems with SSP Corp. EB Series Alloy 400 Encapsulated 3-Way Ball Valves for durability and reliable performance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SSP Corp. EB Series Alloy 400 Encapsulated 3-Way Ball Valves
$89.99
Quantity: 1
Claim Your Seller Account
SSP Corp. EB Series Alloy 400 Encapsulated 3-Way Ball Valves
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial fluid control system with SSP Corp. EB Series Alloy 400 Encapsulated 3-Way Ball Valves. These valves, featuring FNPT connections and Modified PTFE packing, offer exceptional durability and a Cv of 0.75. With a flow pattern of XQS and a temperature range from -65 to 300°F, they ensure reliable performance under various conditions. The green nylon handle with stainless steel insert and locking hardware provide ease of operation and added security. Trust in SSP Corp. for high-quality valves that meet stringent industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

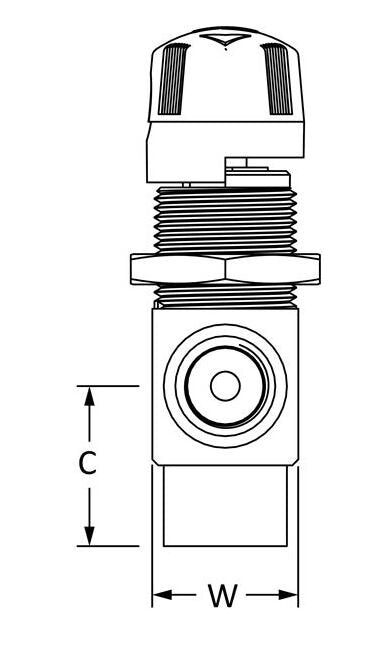

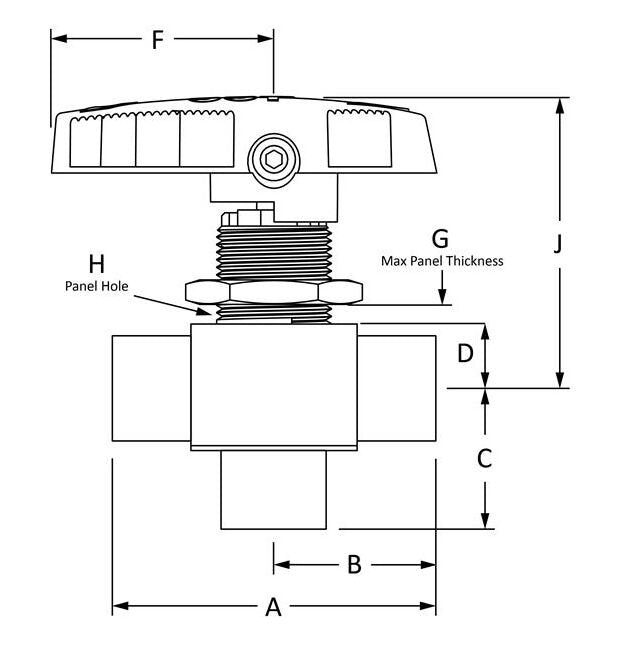

Dimensions A
2.06 in | 52.3 mm
Dimensions B
1.03 in | 26.2 mm
Dimensions C
1.03 in | 26.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0 in
Dimensions F
1.43 in | 36.3 mm
Dimensions G
0.188 in | 4.8 mm
Dimensions H
0.78 in | 19.8 mm
Dimensions J
1.53 in
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy 400
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
FNPT
Specifications Connection 2 Size
1/4-18
Specifications Connection 2 Type
FNPT
Specifications Connection 3 Size
1/4 in
Specifications Connection 3 Type
FNPT
Specifications Cv
0.75
Specifications Flow Pattern
XQS
Specifications Handle Color
Green
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Ssp Pn
43GX4PF-M
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
