SSP Corp. EB Series C-276 Encapsulated 3-way Ball Valves

SSP Corp. EB Series C-276 Encapsulated 3-way Ball Valves

SSP-e18481

Reliable SSP Corp. EB Series C-276 Encapsulated 3-way Ball Valves for precise flow control and durability in industrial settings.

$89.99
$89.99
Sale

Initiate Order

SSP Corp. EB Series C-276 Encapsulated 3-way Ball Valves

SSP Corp. EB Series C-276 Encapsulated 3-way Ball Valves

$89.99

Quantity: 1

Claim Your Seller Account

SSP Corp. EB Series C-276 Encapsulated 3-way Ball Valves

SSP Corp. EB Series C-276 Encapsulated 3-way Ball Valves

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Upgrade your system with the SSP Corp. EB Series Encapsulated 3-way Ball Valves in Alloy C-276. These valves feature Female BSPT connections, a Cv of 0.75, and a durable Modified PTFE packing. With a temperature range of -65 to 300 °F and precise dimensions, these valves ensure reliable flow control and longevity. The blue Nylon handle with Stainless Steel insert provides easy operation and durability, making them ideal for industrial applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

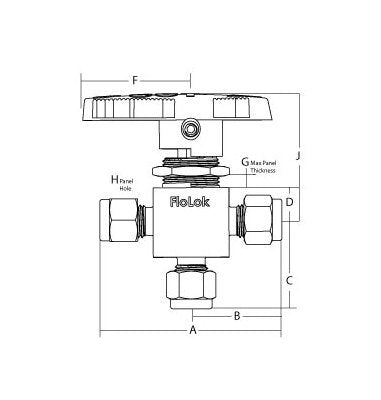

Dimensions A
2.06 in | 52.3 mm
Dimensions B
1.03 in | 26.2 mm
Dimensions C
1.03 in | 26.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0 in
Dimensions F
1.53 in | 38.9 mm
Dimensions G
0.188 in | 4.8 mm
Dimensions H
0.78 in | 19.8 mm
Dimensions J
1.53 in
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy C-276
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Female BSPT
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Female BSPT
Specifications Connection 3 Size
1/4 in
Specifications Connection 3 Type
Female BSPT
Specifications Cv
0.75
Specifications Flow Pattern
XQS
Specifications Handle Color
Blue
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Ssp Pn
43GX4FRT-HC
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
