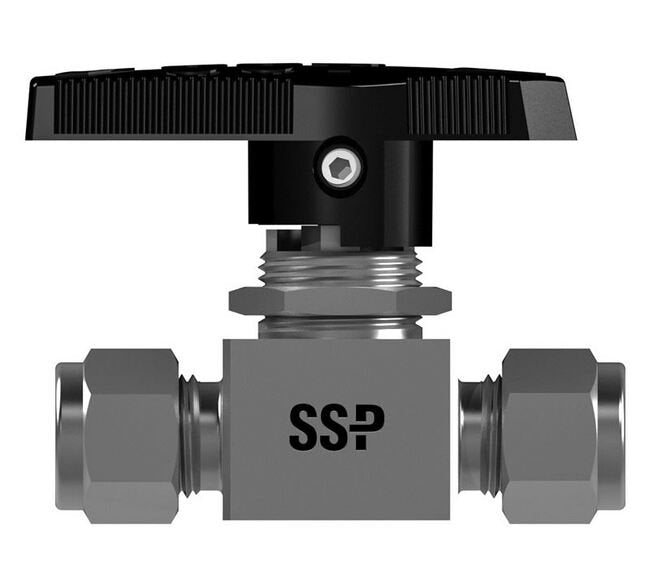

• SSP Corp. EB Series Encapsulated 2-way Alloy 400 Ball Valves 3/8in Griplok - Image 1
  • SSP Corp. EB Series Encapsulated 2-way Alloy 400 Ball Valves 3/8in Griplok - Image 2
  • SSP Corp. EB Series Encapsulated 2-way Alloy 400 Ball Valves 3/8in Griplok - Image 3
1 3
Del Val Controls, Inc →

SSP Corp. EB Series Encapsulated 2-way Alloy 400 Ball Valves 3/8in Griplok

SSP Corp. EB Series Encapsulated 2-way Alloy 400 Ball Valves 3/8in Griplok

SSP-0e4f43

Enhance fluid control with SSP Corp. EB Series 2-way Ball Valves, Alloy 400, Griplok Tube Fittings, 3000 psig, -65 to 300°F.

$89.99
$89.99
Sale

Initiate Order

SSP Corp. EB Series Encapsulated 2-way Alloy 400 Ball Valves 3/8in Griplok

SSP Corp. EB Series Encapsulated 2-way Alloy 400 Ball Valves 3/8in Griplok

$89.99

Quantity: 1

Claim Your Seller Account

SSP Corp. EB Series Encapsulated 2-way Alloy 400 Ball Valves 3/8in Griplok

SSP Corp. EB Series Encapsulated 2-way Alloy 400 Ball Valves 3/8in Griplok

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Upgrade your fluid control system with the SSP Corp. EB Series 2-way Ball Valves featuring Alloy 400 construction and Griplok Tube Fittings. Designed for high pressure applications up to 3000 psig and temperatures ranging from -65 to 300°F, these valves ensure reliable performance. The modified PTFE packing and blue nylon handle with stainless steel insert provide durability and ease of operation. With compliance to federal procurement standards and industry-specific certifications, these valves are ideal for government and institutional use.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

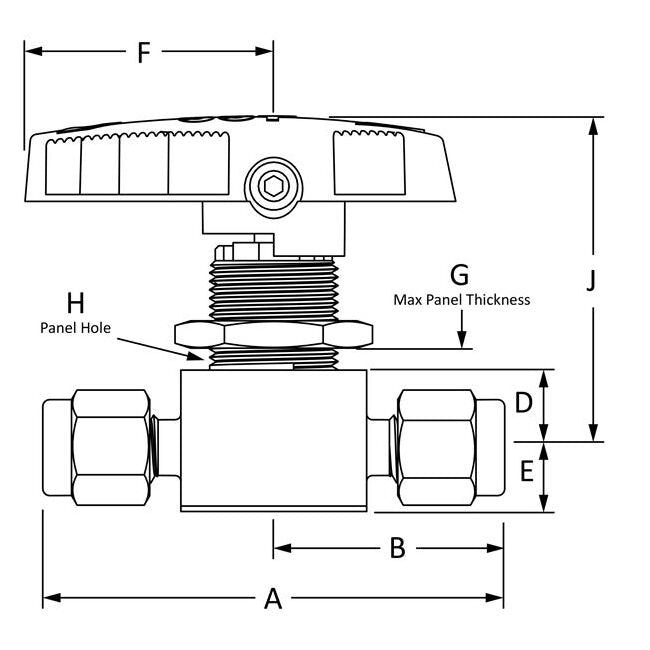

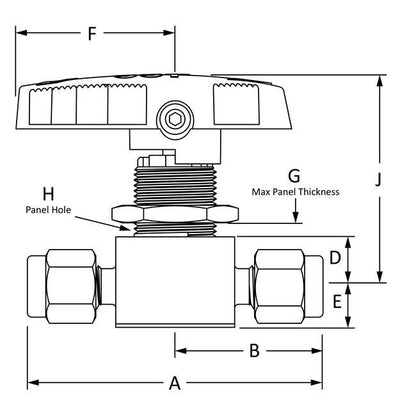

Dimensions A
2.58 in | 65.5 mm
Dimensions B
1.29 in | 32.8 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0.38 in | 9.7 mm
Dimensions F
1.43 in | 36.3 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.8 mm

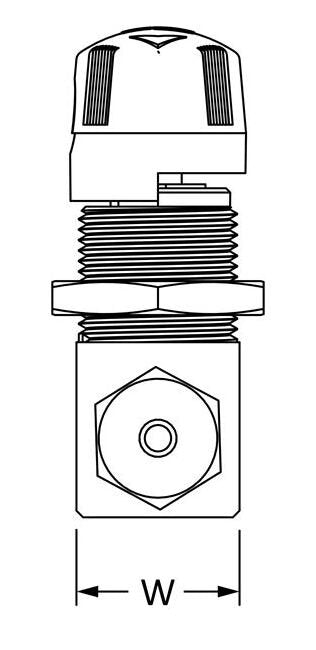

Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy 400
Specifications Brand Series
EB Series
Specifications Connection 1 Size
3/8 in
Specifications Connection 1 Type
Griplok Tube Fitting
Specifications Connection 2 Size
3/8 in
Specifications Connection 2 Type
Griplok Tube Fitting
Specifications Cv
1.5
Specifications Handle Color
Blue
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Shape
2-way
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Working Pressure
3000 psig | 206 bar
