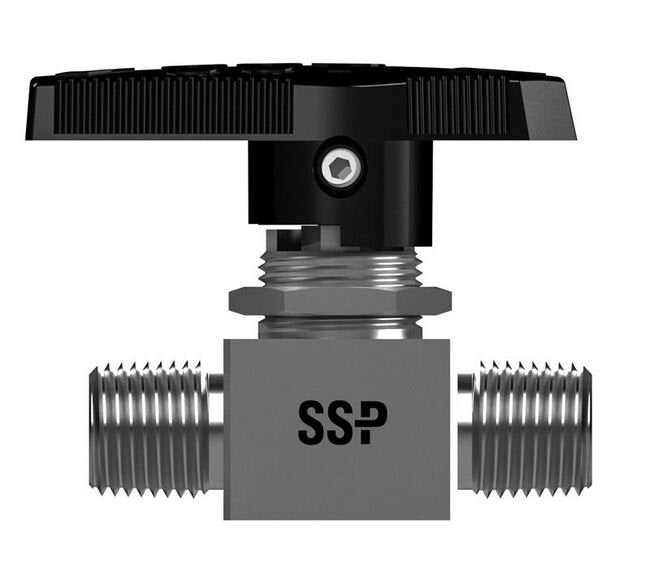

• SSP Corp. EB Series Encapsulated 2-way Ball Valves - Image 1

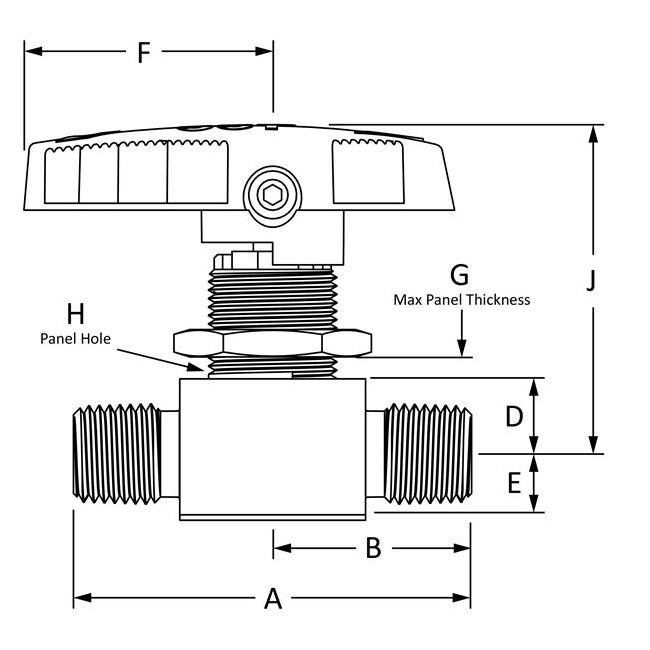

  • SSP Corp. EB Series Encapsulated 2-way Ball Valves - Image 2

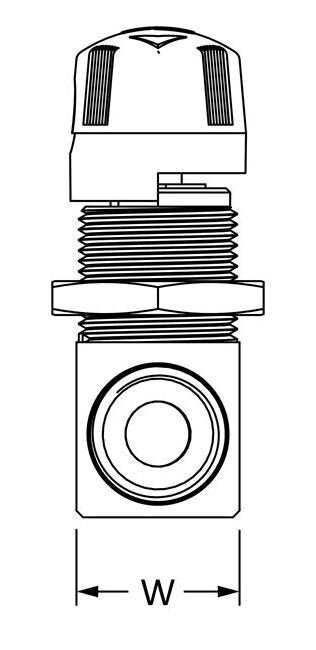

  • SSP Corp. EB Series Encapsulated 2-way Ball Valves - Image 3
1 3
Del Val Controls, Inc →

SSP Corp. EB Series Encapsulated 2-way Ball Valves

SSP Corp. EB Series Encapsulated 2-way Ball Valves

SSP-e74563

Premium SSP Corp. EB Series Ball Valves - 316 SS, 1/4-18 MNPT, Cv: 1.20, Modified PTFE Packing, Blue Nylon Handle, Locking Hardware

$45.99
$45.99
Sale

Initiate Order

SSP Corp. EB Series Encapsulated 2-way Ball Valves

SSP Corp. EB Series Encapsulated 2-way Ball Valves

$45.99

Quantity: 1

Claim Your Seller Account

SSP Corp. EB Series Encapsulated 2-way Ball Valves

SSP Corp. EB Series Encapsulated 2-way Ball Valves

$45.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The SSP Corp. EB Series Encapsulated 2-way Ball Valves are precision-engineered with 316 SS construction, offering exceptional durability and corrosion resistance. Featuring 1/4-18 MNPT connections, a Cv of 1.20, and a modified PTFE packing, these valves ensure reliable performance in demanding industrial applications. With a working pressure of 3000 psig and a wide temperature range of -65 to 300°F, these valves provide robust control and longevity. The inclusion of blue nylon handles with stainless steel inserts and locking hardware adds convenience and security, making them ideal for both consumer and institutional buyers seeking high-quality ball valves.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Dimensions A
2.00 in | 50.8 mm
Dimensions B
1.00 in | 25.4 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0.38 in | 9.7 mm
Dimensions F
1.43 in | 36.3 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.8 mm
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
316 SS
Specifications Brand Series
EB Series
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
MNPT
Specifications Connection 2 Size
1/4-18
Specifications Connection 2 Type
MNPT
Specifications Cv
1.20
Specifications Handle Color
Blue
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
2
Specifications Shape
2-way
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Working Pressure
3000 psig | 206 bar
