SSP Corp. EB Series Encapsulated 2-way Ball Valves - Alloy 400, 1/4-18 MNPT x 1/4 in Unilok Tube Fitting

Name: SSP Corp. EB Series Encapsulated 2-way Ball Valves - Alloy 400, 1/4-18 MNPT x 1/4 in Unilok Tube Fitting
Brand: Del Val Controls, Inc
SKU: SSP-5fc622
Price: 129.99 USD
Availability: OutOfStock

SKU:SSP-5fc622

SSP Corp. EB Series Encapsulated 2-way Ball Valves - Alloy 400, 3000 psig working pressure, precision control.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance fluid control with SSP Corp. EB Series Encapsulated 2-way Ball Valves. Made of Alloy 400, withstands up to 3000 psig working pressure. Features a Cv of 0.75, Modified PTFE packing, and Black Nylon handle with a Stainless Steel insert. Precise dimensions ensure optimal performance in temperature ranges from -65 to 300 ÂºF. Perfect for industries requiring secure locking hardware and precise orifice control.

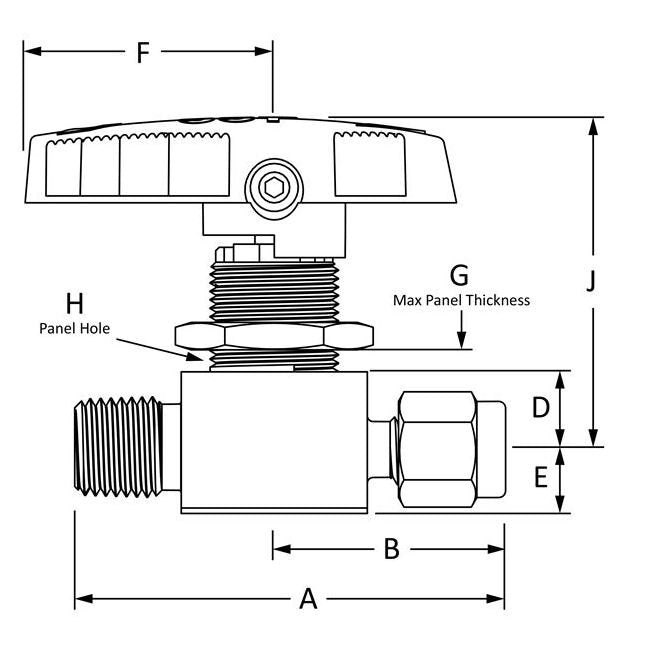

Product Specifications

Dimensions A

2.20 in | 55.9 mm

Dimensions B

1.20 in | 30.5 mm

Dimensions D

0.44 in | 11.2 mm

Dimensions E

0.38 in | 9.7 mm

Dimensions F

1.43 in | 36.3 mm

Dimensions G

3/16 in | 4.8 mm

Dimensions H

25/32 in | 19.8 mm

Dimensions J

1.53 in | 38.8 mm

Dimensions W

0.78 in

Specifications Actuation Type

Specifications Body Material

Alloy 400

Specifications Brand Series

EB Series

Specifications Connection 1 Size

1/4-18

Specifications Connection 1 Type

MNPT

Specifications Connection 2 Size

1/4 in

Specifications Connection 2 Type

Unilok Tube Fitting

Specifications Cv

0.75

Specifications Handle Color

Black

Specifications Handle Type

Nylon - Stainless Steel Insert

Specifications Hardware

Locking Device

Specifications Orifice

0.187 in | 4.7498 mm

Specifications Packing Material

Modified PTFE

Specifications Production Category

Specifications Shape

2-way

Specifications Temperature

-65 to 300 ÂºF | -53 to 148 ÂºC

Specifications Working Pressure

3000 psig | 206 bar

SSP Corp. EB Series Encapsulated 2-way Ball Valves - Alloy 400, 1/4-18 MNPT x 1/4 in Unilok Tube Fitting
