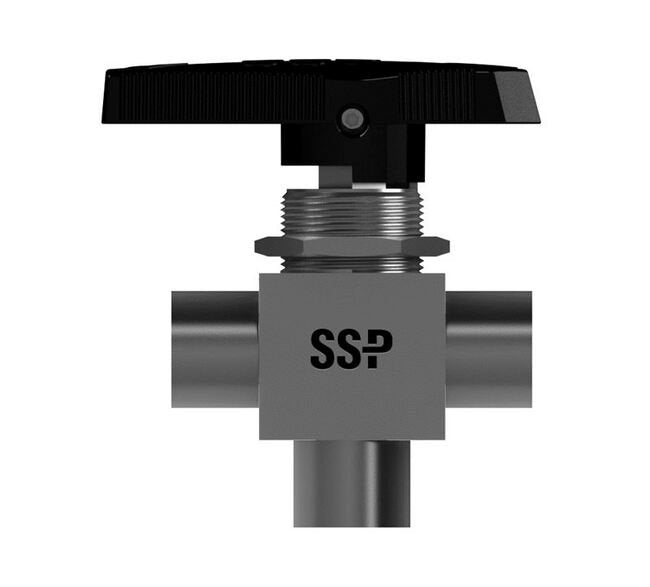

SSP Corp. EB Series Encapsulated 3-Way Ball Valves
SSP Corp. EB Series Encapsulated 3-Way Ball Valves
SKU:SSP-befe92
SSP Corp. EB Series 3-Way Ball Valves: Alloy C-276, FNPT Connections, Cv 0.75, XQS Flow Pattern, -65 to 300°F, Locking Hardware
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SSP Corp. EB Series Encapsulated 3-Way Ball Valves
$129.99
Quantity: 1
Claim Your Seller Account
SSP Corp. EB Series Encapsulated 3-Way Ball Valves
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid control system with SSP Corp.'s EB Series Encapsulated 3-Way Ball Valves. Constructed from Alloy C-276 with Modified PTFE packing, these valves offer a reliable solution for demanding environments. Featuring FNPT connections, a Cv of 0.75, and a flow pattern of XQS, these valves ensure precise flow control. With a temperature range of -65 to 300°F, yellow Nylon handle with stainless steel insert, and locking hardware, these valves combine durability and security. Compliant with federal procurement standards, these valves are ideal for industrial, institutional, and government applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

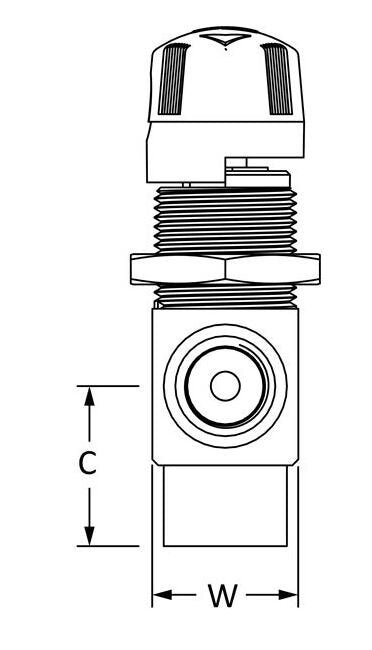

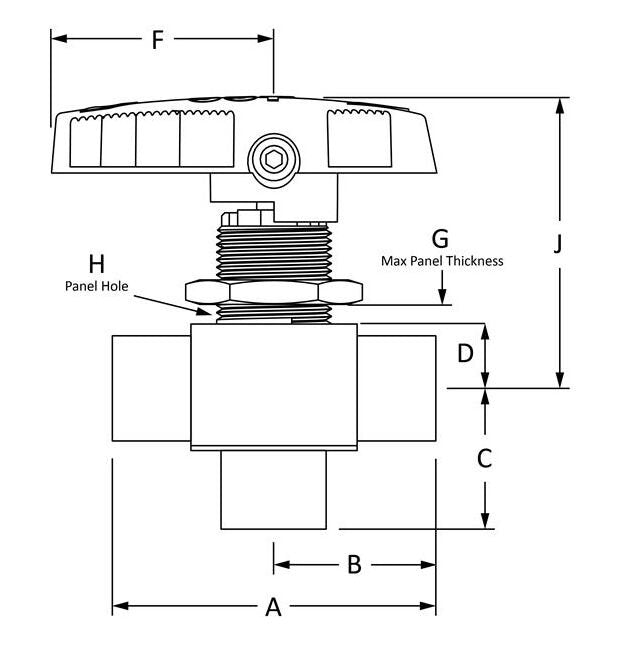

Dimensions A
2.06 in | 52.3 mm
Dimensions B
1.03 in | 26.2 mm
Dimensions C
1.03 in | 26.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0 in
Dimensions F
1.43 in | 36.3 mm
Dimensions G
0.188 in | 4.8 mm
Dimensions H
0.78 in | 19.8 mm
Dimensions J
1.53 in
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy C-276
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
FNPT
Specifications Connection 2 Size
1/4-18
Specifications Connection 2 Type
FNPT
Specifications Connection 3 Size
1/4 in
Specifications Connection 3 Type
FNPT
Specifications Cv
0.75
Specifications Flow Pattern
XQS
Specifications Handle Color
Yellow
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Ssp Pn
43GX4PF-HC
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
