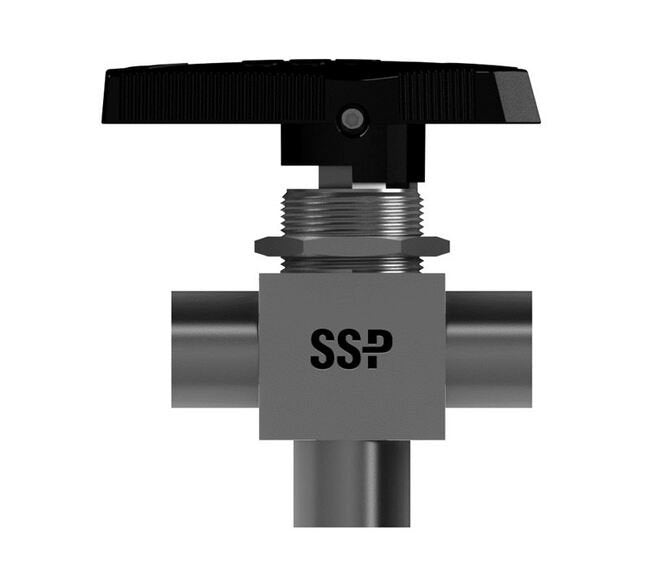

SSP Corp. EB Series Encapsulated 3-way Ball Valves

SSP Corp. EB Series Encapsulated 3-way Ball Valves

SSP-1e2a38

SSP Corp. EB Series Ball Valves - Alloy 400, Cv: 0.75, Modified PTFE packing, Red Nylon handle, -65 to 300°F temp range

$75.99
$75.99
Sale

Initiate Order

SSP Corp. EB Series Encapsulated 3-way Ball Valves

SSP Corp. EB Series Encapsulated 3-way Ball Valves

$75.99

Quantity: 1

Claim Your Seller Account

SSP Corp. EB Series Encapsulated 3-way Ball Valves

SSP Corp. EB Series Encapsulated 3-way Ball Valves

$75.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Enhance fluid control with SSP Corp. EB Series Encapsulated 3-way Ball Valves. Crafted from Alloy 400 and featuring a Cv of 0.75, these valves ensure precision flow management. With modified PTFE packing and a red Nylon handle with stainless steel insert, they offer durability and reliability. Operating temperature ranges from -65 to 300°F, meeting rigorous standards for performance and longevity.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

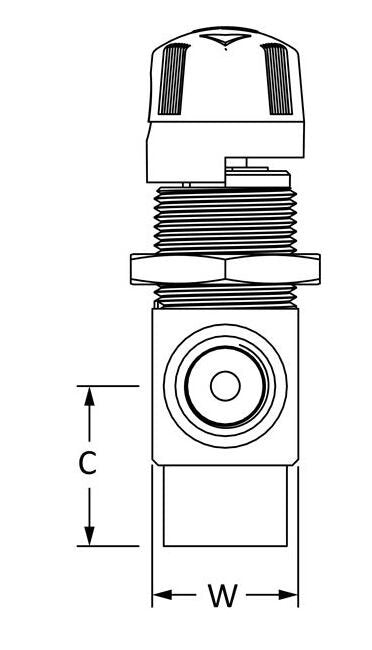

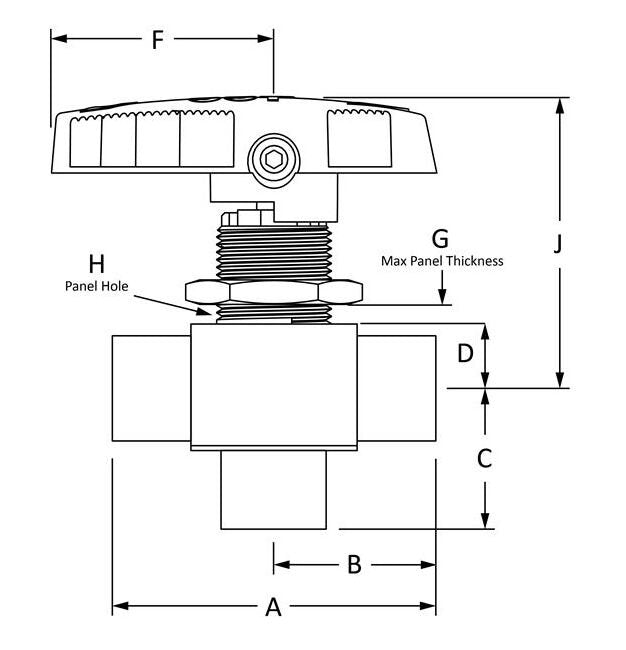

Dimensions A
2.06 in | 52.3 mm
Dimensions B
1.03 in | 26.2 mm
Dimensions C
1.03 in | 26.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0 in
Dimensions F
1.43 in | 36.3 mm
Dimensions G
0.188 in | 4.8 mm
Dimensions H
0.78 in | 19.8 mm
Dimensions J
1.53 in
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy 400
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
FNPT
Specifications Connection 2 Size
1/4-18
Specifications Connection 2 Type
FNPT
Specifications Connection 3 Size
1/4 in
Specifications Connection 3 Type
FNPT
Specifications Cv
0.75
Specifications Flow Pattern
XQS
Specifications Handle Color
Red
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Ssp Pn
43GX4PF-M
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
