SSP Corp EB Series Encapsulated 3-Way Ball Valves
SSP Corp EB Series Encapsulated 3-Way Ball Valves
SKU:SSP-431fb2
High-performance 316 SS 3-way Ball Valves with 1/4 in connections, Modified PTFE packing, and locking hardware
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SSP Corp EB Series Encapsulated 3-Way Ball Valves
$129.99
Quantity: 1
Claim Your Seller Account
SSP Corp EB Series Encapsulated 3-Way Ball Valves
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

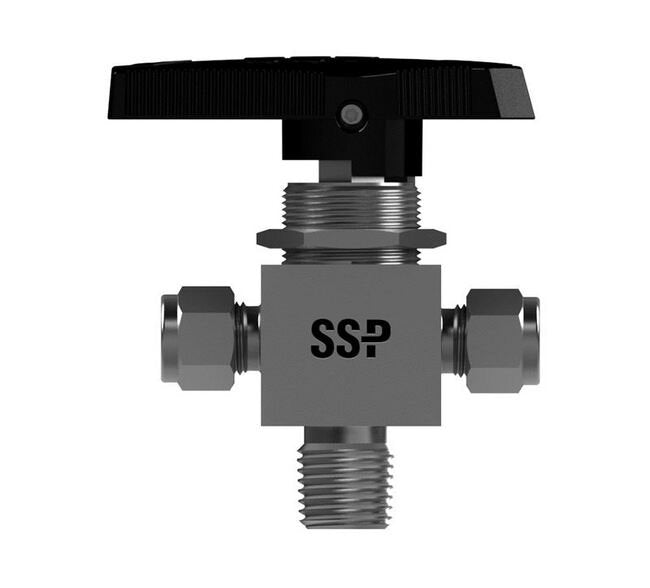

Upgrade your industrial fluid control system with SSP Corp EB Series Encapsulated 3-Way Ball Valves. Made of 316 SS, these valves feature 1/4 in Unilok Tube Fittings and 1/4-18 Male NPT connection, ensuring precise flow control. With a Cv of 0.75 and Modified PTFE packing, these valves offer exceptional durability and performance. The black Nylon handle with a Stainless Steel insert, along with locking hardware, adds ease of operation and security. From temperature range -65 to 300 ºF to compliance with industry standards, these valves meet the stringent requirements of institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

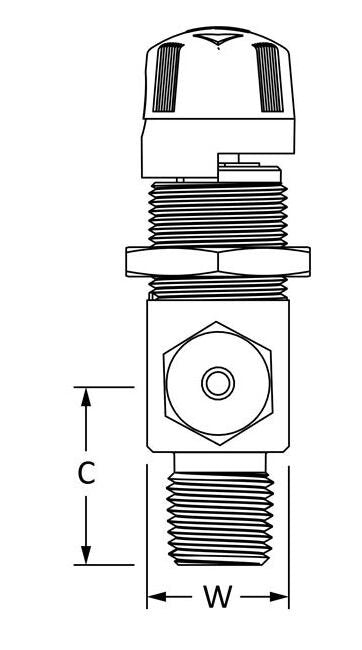

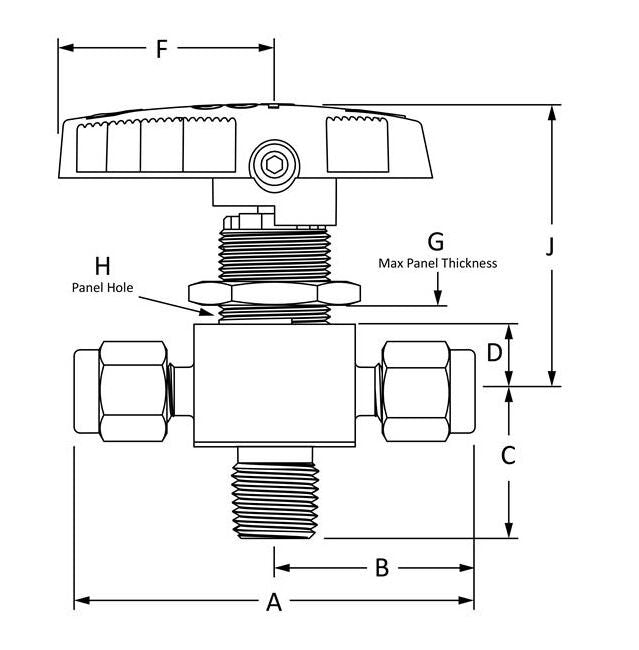

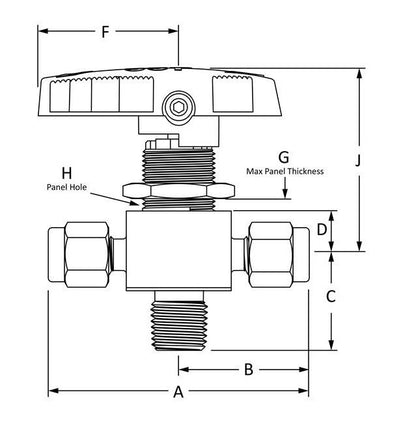

Dimensions A
2.39 in | 60.7 mm
Dimensions B
1.2 in | 30.5 mm
Dimensions C
1.03 in | 26.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0 in
Dimensions F
1.43 in | 36.3 mm
Dimensions G
0.188 in | 4.8 mm
Dimensions H
0.78 in | 19.8 mm
Dimensions J
1.53 in
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
316 SS
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Unilok Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Unilok Tube Fitting
Specifications Connection 3 Size
1/4 in
Specifications Connection 3 Type
MNPT
Specifications Cv
0.75
Specifications Flow Pattern
XQS
Specifications Handle Color
Black
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Ssp Pn
43GXU4U44PM-316
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
