SSP Corp. EB Series Encapsulated 3-Way Ball Valves - Alloy C-276, 1/4 in Female BSPT
SSP Corp. EB Series Encapsulated 3-Way Ball Valves - Alloy C-276, 1/4 in Female BSPT
SKU:SSP-886cff
Enhance control with SSP Corp. EB Series 3-Way Ball Valves - C-276, 1/4 in Female BSPT. Durable, precise, and compliant for industrial use.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
SSP Corp. EB Series Encapsulated 3-Way Ball Valves - Alloy C-276, 1/4 in Female BSPT
$149.99
Quantity: 1
Claim Your Seller Account
SSP Corp. EB Series Encapsulated 3-Way Ball Valves - Alloy C-276, 1/4 in Female BSPT
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid control systems with SSP Corp. EB Series Encapsulated 3-Way Ball Valves. Crafted from Alloy C-276, these valves feature three 1/4 inch Female BSPT connections with a Cv of 0.75, ensuring precise flow control. The modified PTFE packing and XQS flow pattern enhance durability and efficiency, while the blue Nylon handle with Stainless Steel insert provides ergonomic operation. With temperature tolerance from -65 to 300°F, lockable hardware, and compliance with industry standards, these valves are ideal for industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

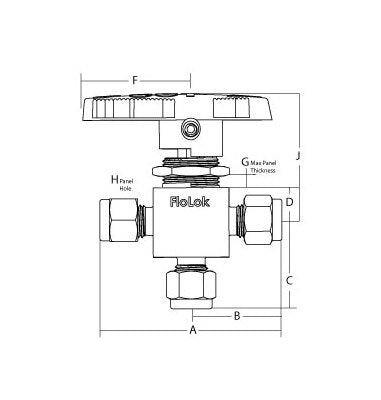

Dimensions A
2.06 in | 52.3 mm
Dimensions B
1.03 in | 26.2 mm
Dimensions C
1.03 in | 26.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0 in
Dimensions F
1.53 in | 38.9 mm
Dimensions G
0.188 in | 4.8 mm
Dimensions H
0.78 in | 19.8 mm
Dimensions J
1.53 in
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy C-276
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Female BSPT
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Female BSPT
Specifications Connection 3 Size
1/4 in
Specifications Connection 3 Type
Female BSPT
Specifications Cv
0.75
Specifications Flow Pattern
XQS
Specifications Handle Color
Blue
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Ssp Pn
43GX4FRT-HC
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
