SSP Corp. EB Series Encapsulated 3-way Ball Valves - C-276, 1/4 in Female BSPT (Pack of 1)
SSP Corp. EB Series Encapsulated 3-way Ball Valves - C-276, 1/4 in Female BSPT (Pack of 1)
SKU:SSP-e9b97d
SSP Corp. EB Series Encapsulated 3-way Ball Valves - Corrosion-resistant Alloy C-276, precise flow control, secure locking hardware. Ideal for institutional use.
Regular price
$65.99
Regular price
Sale price
$65.99
Unit price
per
Initiate Order
SSP Corp. EB Series Encapsulated 3-way Ball Valves - C-276, 1/4 in Female BSPT (Pack of 1)
$65.99
Quantity: 1
Claim Your Seller Account
SSP Corp. EB Series Encapsulated 3-way Ball Valves - C-276, 1/4 in Female BSPT (Pack of 1)
$65.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SSP Corp. EB Series Encapsulated 3-way Ball Valves are crafted from Alloy C-276, ensuring exceptional durability and corrosion resistance in demanding industrial environments. Featuring 1/4 inch Female BSPT connections and a Cv of 0.75, these valves offer precise control over flow patterns with a Modified PTFE packing material. The bright yellow Nylon handle with a Stainless Steel insert provides a secure grip, while the locking hardware adds an extra layer of safety and control. With a temperature range from -65 to 300°F, these valves excel in versatility and reliability, making them a trusted choice for institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

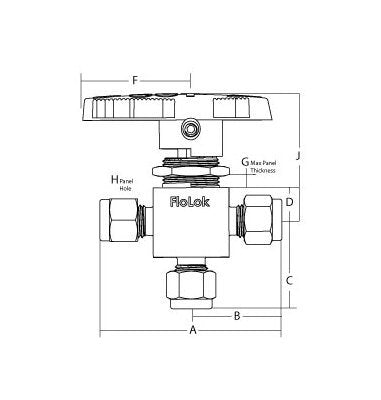

Dimensions A
2.06 in | 52.3 mm
Dimensions B
1.03 in | 26.2 mm
Dimensions C
1.03 in | 26.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0 in
Dimensions F
1.53 in | 38.9 mm
Dimensions G
0.188 in | 4.8 mm
Dimensions H
0.78 in | 19.8 mm
Dimensions J
1.53 in
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy C-276
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Female BSPT
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Female BSPT
Specifications Connection 3 Size
1/4 in
Specifications Connection 3 Type
Female BSPT
Specifications Cv
0.75
Specifications Flow Pattern
XQS
Specifications Handle Color
Yellow
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Ssp Pn
43GX4FRT-HC
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
