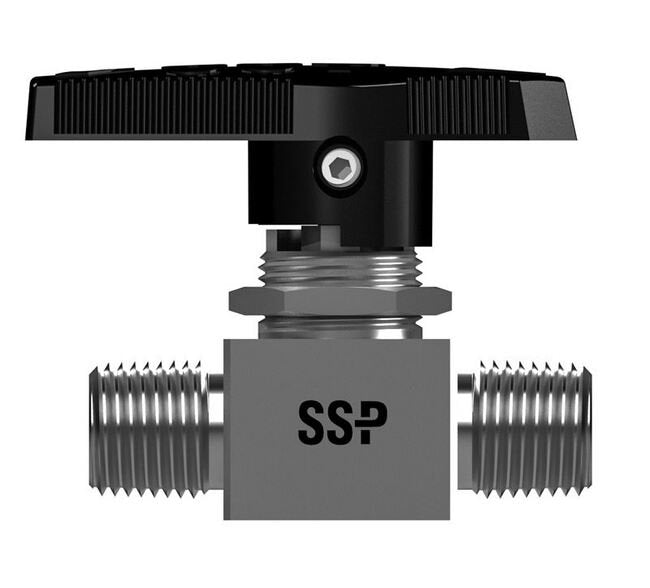

SSP Corp. Encapsulated 2-way Ball Valves, Alloy C-276, 1/4-18 MNPT x 1/4-18 MNPT
SSP Corp. Encapsulated 2-way Ball Valves, Alloy C-276, 1/4-18 MNPT x 1/4-18 MNPT
SKU:SSP-c6f033
Reliable SSP Corp. Encapsulated 2-way Ball Valves with Alloy C-276 construction, 1/4-18 MNPT connections, and Modified PTFE packing. Ideal for industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
SSP Corp. Encapsulated 2-way Ball Valves, Alloy C-276, 1/4-18 MNPT x 1/4-18 MNPT
$129.99
Quantity: 1
Claim Your Seller Account
SSP Corp. Encapsulated 2-way Ball Valves, Alloy C-276, 1/4-18 MNPT x 1/4-18 MNPT
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SSP Corp. Encapsulated 2-way Ball Valves in the EB Series are crafted from Alloy C-276, ensuring exceptional durability and corrosion resistance. With 1/4-18 MNPT connections, these valves offer a Cv of 1.20 and feature Modified PTFE packing for reliable performance. The blue Nylon handle with a stainless steel insert provides a secure grip, complemented by locking hardware for added safety. Operating within a temperature range of -65 to 300 ºF, these valves meet stringent industry standards for quality and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

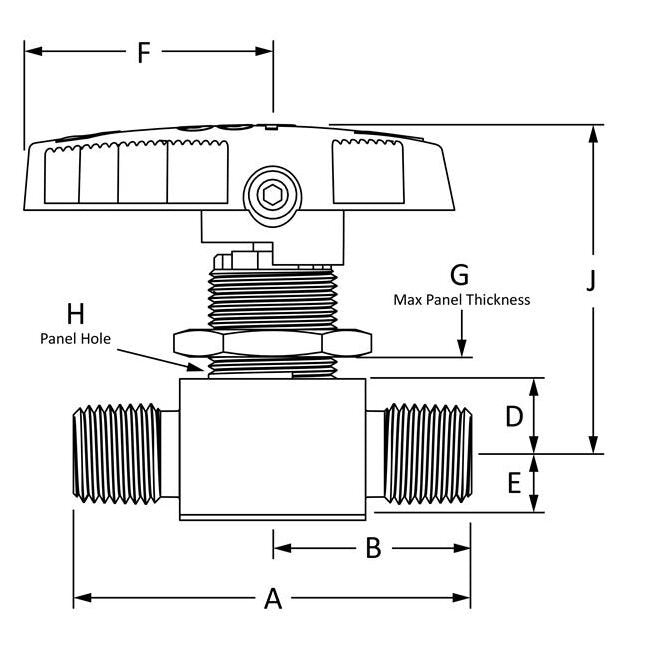

Dimensions A
2.00 in | 50.8 mm
Dimensions B
1.00 in | 25.4 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0.38 in | 9.7 mm
Dimensions F
1.43 in | 36.3 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.8 mm

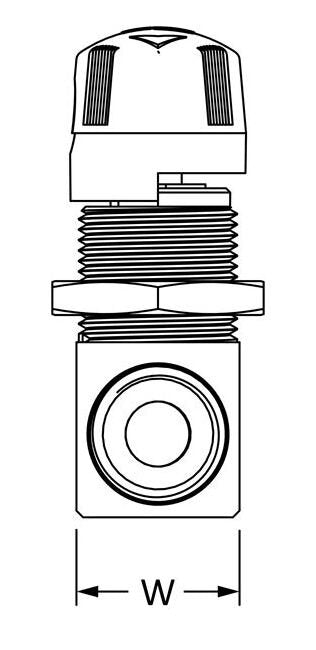

Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy C-276
Specifications Brand Series
EB Series
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
MNPT
Specifications Connection 2 Size
1/4-18
Specifications Connection 2 Type
MNPT
Specifications Cv
1.20
Specifications Handle Color
Blue
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Shape
2-way
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Working Pressure
3000 psig | 206 bar
