SSP Corp. Encapsulated 3-Way Ball Valves - Alloy 400, 1/4-18 FNPT
SSP Corp. Encapsulated 3-Way Ball Valves - Alloy 400, 1/4-18 FNPT
SKU:SSP-9bfd42
SSP Corp. Encapsulated 3-Way Ball Valves with Alloy 400 construction, 1/4-18 FNPT connections, and modified PTFE packing. Ideal for industrial use.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
SSP Corp. Encapsulated 3-Way Ball Valves - Alloy 400, 1/4-18 FNPT
$79.99
Quantity: 1
Claim Your Seller Account
SSP Corp. Encapsulated 3-Way Ball Valves - Alloy 400, 1/4-18 FNPT
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SSP Corp. Encapsulated 3-Way Ball Valves from the EB Series are expertly engineered for durability and precision. Constructed from Alloy 400, these valves feature 1/4-18 FNPT connections, a Cv of 0.75, and modified PTFE packing for reliable performance. With a flow pattern of XQS and a sturdy blue nylon handle with stainless steel insert, these valves ensure smooth operation and longevity. Designed for a temperature range of -65 to 300°F, these valves are ideal for industrial applications requiring top-tier quality and functionality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

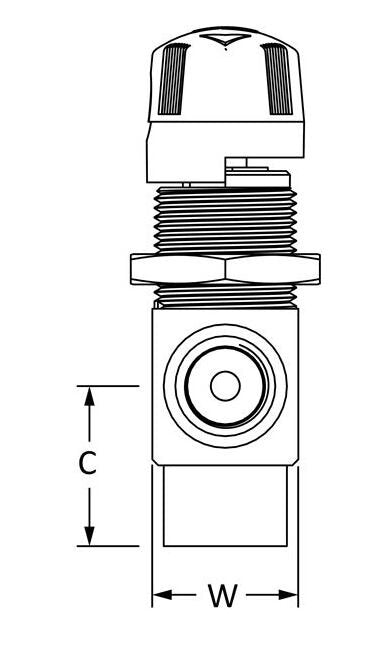

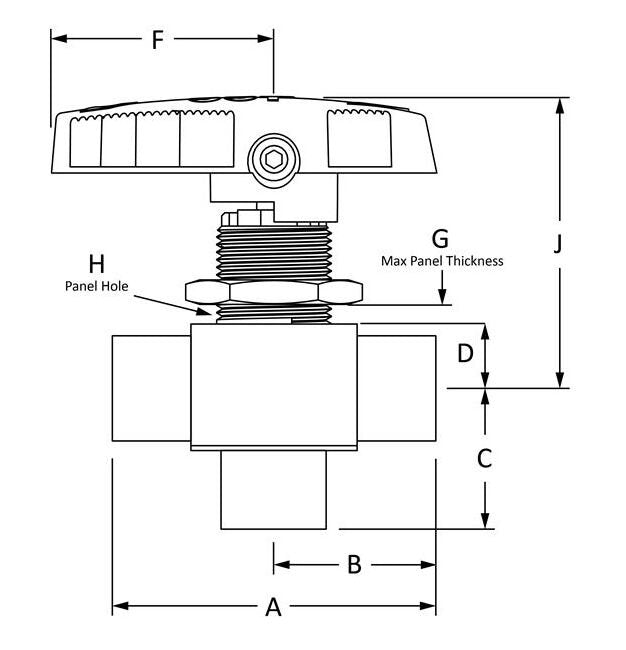

Dimensions A
2.06 in | 52.3 mm
Dimensions B
1.03 in | 26.2 mm
Dimensions C
1.03 in | 26.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0 in
Dimensions F
1.43 in | 36.3 mm
Dimensions G
0.188 in | 4.8 mm
Dimensions H
0.78 in | 19.8 mm
Dimensions J
1.53 in
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy 400
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
FNPT
Specifications Connection 2 Size
1/4-18
Specifications Connection 2 Type
FNPT
Specifications Connection 3 Size
1/4 in
Specifications Connection 3 Type
FNPT
Specifications Cv
0.75
Specifications Flow Pattern
XQS
Specifications Handle Color
Blue
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Ssp Pn
43GX4PF-M
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
