SSP Corp. Encapsulated 3-Way Ball Valves - Alloy 400, Griplok Fittings, MNPT, XQS Flow
SSP Corp. Encapsulated 3-Way Ball Valves - Alloy 400, Griplok Fittings, MNPT, XQS Flow
SKU:SSP-737f4d
High-quality SSP Corp. 3-way Ball Valves - Alloy 400, Griplok Fittings, MNPT, XQS Flow. Reliable & durable.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
SSP Corp. Encapsulated 3-Way Ball Valves - Alloy 400, Griplok Fittings, MNPT, XQS Flow
$79.99
Quantity: 1
Claim Your Seller Account
SSP Corp. Encapsulated 3-Way Ball Valves - Alloy 400, Griplok Fittings, MNPT, XQS Flow
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

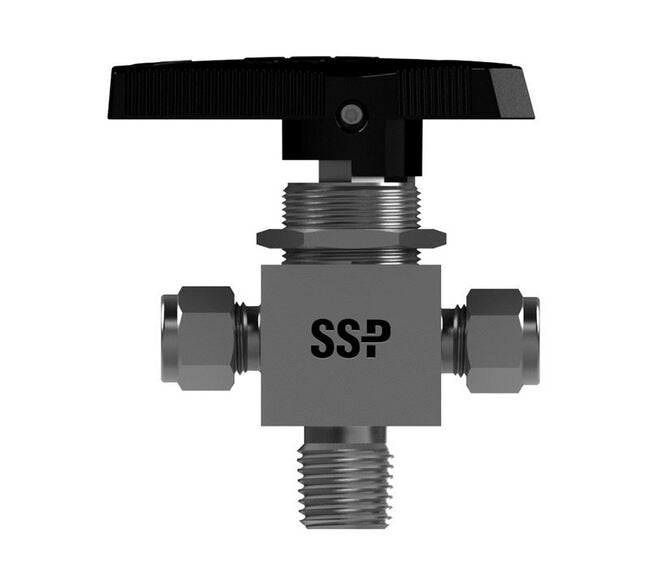

Enhance your fluid control system with SSP Corp. EB Series 3-way Ball Valves. Crafted from Alloy 400, these valves feature Griplok Tube Fittings for secure connections and an MNPT end. With a Cv of 0.75 and Modified PTFE packing, they ensure reliable performance in temperatures ranging from -65 to 300°F. The red Nylon handle with Stainless Steel insert provides durability and ease of operation. Compliant with industry standards, these valves are ideal for various applications requiring precision and quality flow control.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

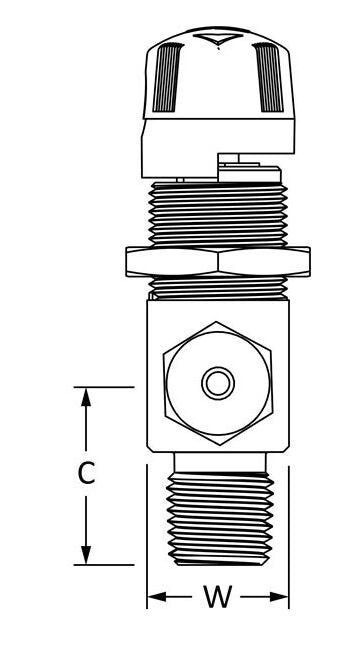

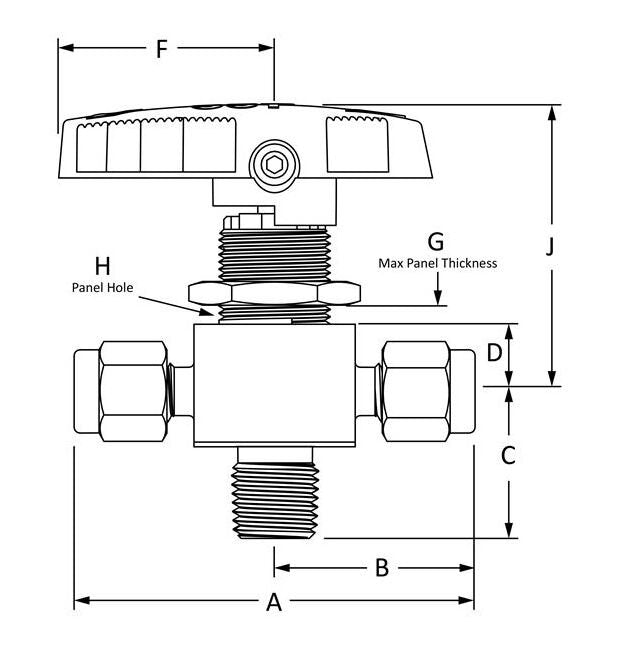

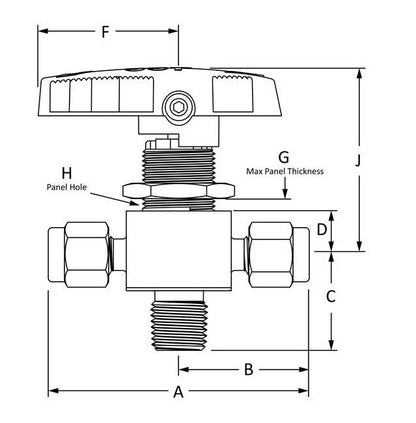

Dimensions A
2.39 in | 60.7 mm
Dimensions B
1.2 in | 30.5 mm
Dimensions C
1.03 in | 26.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0 in
Dimensions F
1.43 in | 36.3 mm
Dimensions G
0.188 in | 4.8 mm
Dimensions H
0.78 in | 19.8 mm
Dimensions J
1.53 in
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy 400
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Griplok Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Griplok Tube Fitting
Specifications Connection 3 Size
1/4 in
Specifications Connection 3 Type
MNPT
Specifications Cv
0.75
Specifications Flow Pattern
XQS
Specifications Handle Color
Red
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Ssp Pn
43GXG4G44PM-M-RG
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
