SSP Corp. Encapsulated 3-Way Ball Valves, Alloy C-276, 1/4 in Female BSPT, Pack of 1
SSP Corp. Encapsulated 3-Way Ball Valves, Alloy C-276, 1/4 in Female BSPT, Pack of 1
SKU:SSP-14e9fe
High-quality SSP Corp. Encapsulated 3-Way Ball Valves, C-276 Alloy, 1/4 in Female BSPT, Cv: 0.75. Ideal for precise flow control.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SSP Corp. Encapsulated 3-Way Ball Valves, Alloy C-276, 1/4 in Female BSPT, Pack of 1
$89.99
Quantity: 1
Claim Your Seller Account
SSP Corp. Encapsulated 3-Way Ball Valves, Alloy C-276, 1/4 in Female BSPT, Pack of 1
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SSP Corp. EB Series Encapsulated 3-way Ball Valves are crafted from Alloy C-276, offering exceptional durability and chemical resistance. Featuring 1/4 in Female BSPT connections and a Cv of 0.75, these valves ensure precise flow control. With modified PTFE packing and a temperature range of -65 to 300°F, they guarantee reliable performance in diverse environments. The green Nylon handle with Stainless Steel insert provides ergonomic operation, making them ideal for industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

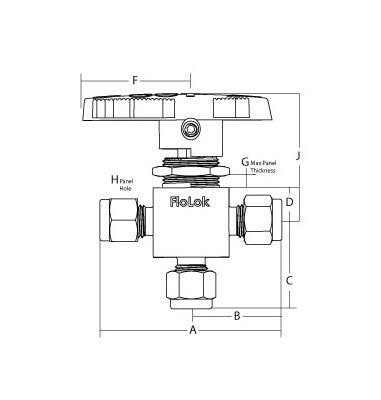

Dimensions A
2.06 in | 52.3 mm
Dimensions B
1.03 in | 26.2 mm
Dimensions C
1.03 in | 26.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0 in
Dimensions F
1.53 in | 38.9 mm
Dimensions G
0.188 in | 4.8 mm
Dimensions H
0.78 in | 19.8 mm
Dimensions J
1.53 in
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy C-276
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Female BSPT
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Female BSPT
Specifications Connection 3 Size
1/4 in
Specifications Connection 3 Type
Female BSPT
Specifications Cv
0.75
Specifications Flow Pattern
XQS
Specifications Handle Color
Green
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Ssp Pn
43GX4FRT-HC
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
