SSP Corp. Encapsulated 3-Way Ball Valves - Brass, 1/4 in, XQS Flow Pattern
SSP Corp. Encapsulated 3-Way Ball Valves - Brass, 1/4 in, XQS Flow Pattern
SKU:SSP-19b916
Enhance fluid control with SSP Corp. Encapsulated 3-Way Ball Valves - Brass construction, Unilok fittings, XQS flow, and durable PTFE packing. Ideal for industrial applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
SSP Corp. Encapsulated 3-Way Ball Valves - Brass, 1/4 in, XQS Flow Pattern
$59.99
Quantity: 1
Claim Your Seller Account
SSP Corp. Encapsulated 3-Way Ball Valves - Brass, 1/4 in, XQS Flow Pattern
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

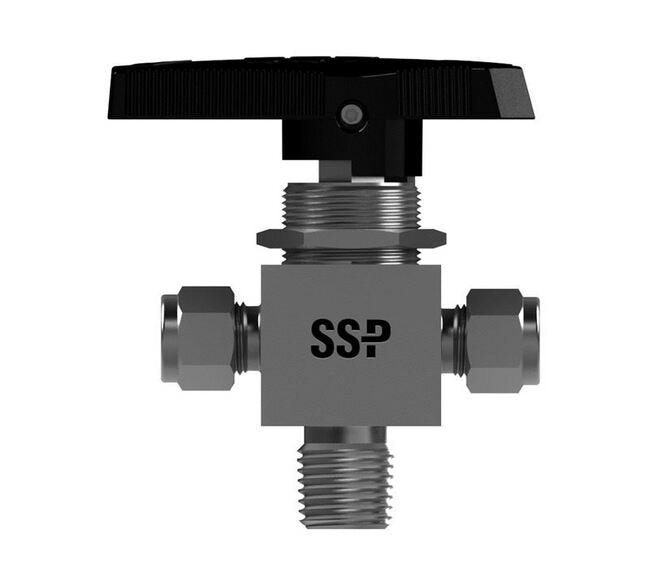

Experience superior fluid control with SSP Corp. Encapsulated 3-Way Ball Valves. Crafted from high-quality brass, these valves feature Unilok Tube Fittings, MNPT connections, and a Cv of 0.75. With a modified PTFE packing material and a temperature range of -65 to 300 °F, these valves ensure reliability and durability. The blue Nylon handle with Stainless Steel insert provides ease of operation, making them ideal for industrial applications. Compliant with Federal procurement standards, these valves offer exceptional performance and longevity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

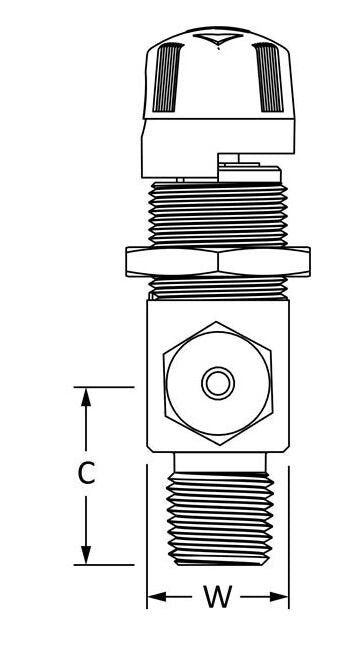

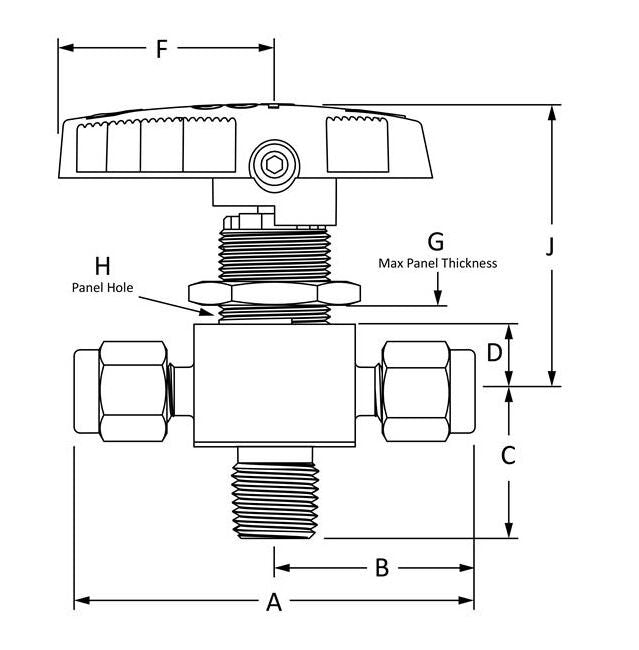

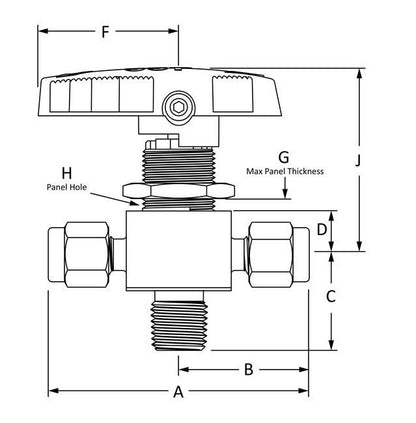

Dimensions A
2.39 in | 60.7 mm
Dimensions B
1.2 in | 30.5 mm
Dimensions C
1.03 in | 26.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0 in
Dimensions F
1.43 in | 36.3 mm
Dimensions G
0.188 in | 4.8 mm
Dimensions H
0.78 in | 19.8 mm
Dimensions J
1.53 in
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Brass
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Unilok Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Unilok Tube Fitting
Specifications Connection 3 Size
1/4 in
Specifications Connection 3 Type
MNPT
Specifications Cv
0.75
Specifications Flow Pattern
XQS
Specifications Handle Color
Blue
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Ssp Pn
43GXU4U44PM-B-BL
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
