SSP Corp Encapsulated 3-Way Ball Valves - EB Series Alloy 400
SSP Corp Encapsulated 3-Way Ball Valves - EB Series Alloy 400
SKU:SSP-798289
Enhance fluid control with SSP Corp's 3-way ball valves featuring Alloy 400 construction, Griplok fittings, and XQS flow pattern.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
SSP Corp Encapsulated 3-Way Ball Valves - EB Series Alloy 400
$79.99
Quantity: 1
Claim Your Seller Account
SSP Corp Encapsulated 3-Way Ball Valves - EB Series Alloy 400
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid control system with SSP Corp's EB Series 3-way ball valves. Constructed with Alloy 400, these valves feature Griplok tube fittings and a male NPT connection. With a Cv of 0.80 and modified PTFE packing, these valves ensure reliable performance. The flow pattern XQS and blue nylon handle with stainless steel insert enhance durability and ease of operation. Meeting stringent industry standards, these valves are ideal for both consumer and institutional use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

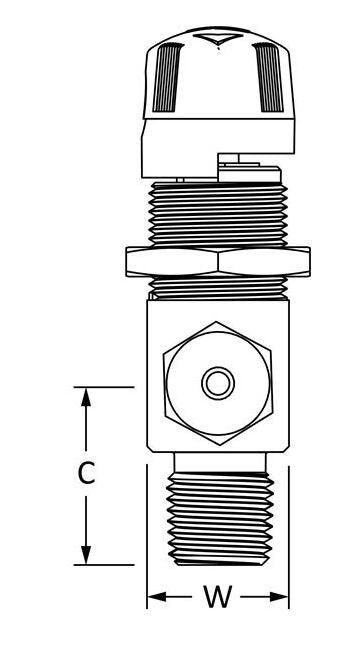

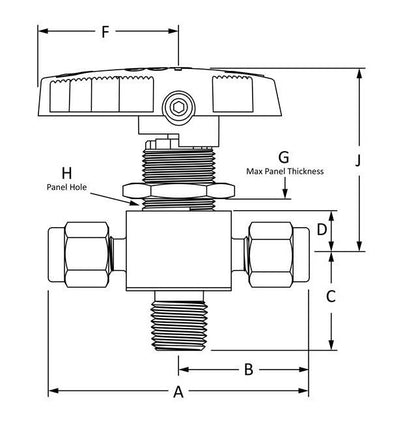

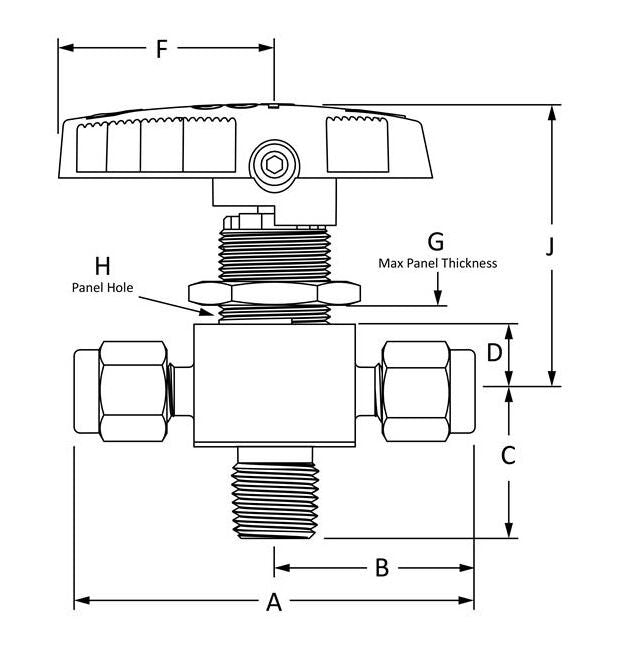

Dimensions A
2.39 in | 60.7 mm
Dimensions B
1.2 in | 30.5 mm
Dimensions C
1.03 in | 26.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0 in
Dimensions F
1.43 in | 36.3 mm
Dimensions G
0.188 in | 4.8 mm
Dimensions H
0.78 in | 19.8 mm
Dimensions J
1.53 in
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy 400
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Griplok Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Griplok Tube Fitting
Specifications Connection 3 Size
1/4 in
Specifications Connection 3 Type
MNPT
Specifications Cv
0.75
Specifications Flow Pattern
XQS
Specifications Handle Color
Blue
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Ssp Pn
43GXG4G44PM-M-BL
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
