SSP Corp. Griplok 45° Positionable Male Elbow - Alloy 400, 3/4 in
SSP Corp. Griplok 45° Positionable Male Elbow - Alloy 400, 3/4 in
SKU:SSP-cd1c1f
SSP Corp. Griplok 45° Positionable Male Elbow - Alloy 400, 3/4 in. High-quality, reliable tube fitting for precision applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SSP Corp. Griplok 45° Positionable Male Elbow - Alloy 400, 3/4 in
$29.99
Quantity: 1
Claim Your Seller Account
SSP Corp. Griplok 45° Positionable Male Elbow - Alloy 400, 3/4 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

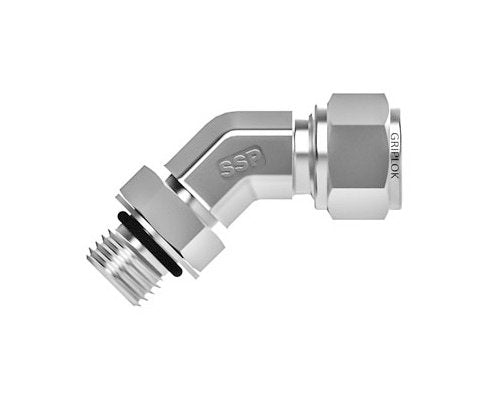

The SSP Corp. Griplok 45° Positionable Male Elbow is a top-quality fitting designed for precision tubing applications. Made of durable Alloy 400, this elbow ensures reliable performance in demanding environments. With a 3/4 in male SAE connection size, it offers secure and leak-free connections. The griplok feature allows for easy installation and positioning at a 45-degree angle, enhancing flexibility and convenience. Trust in the Griplok series for superior quality and precise fittings that meet industry standards for instrumentation tube fittings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

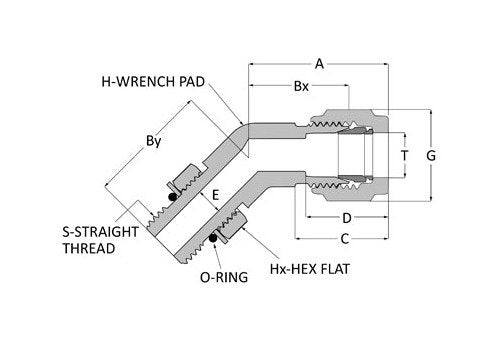

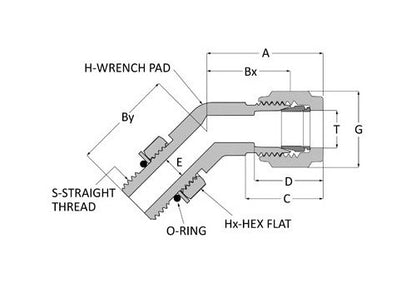

Dimensions A
1.57 in
Dimensions Bx
1.17 in
Dimensions By
1.86 in
Dimensions C
0.86 in
Dimensions D
0.96 in
Dimensions E
0.62 in
Dimensions G
1 1/8 in
Dimensions H
1 1/8 in
Dimensions Hx
1 1/4 in
Dimensions S
1 1/16-12
Dimensions T
3/4 in
Specifications As568 O Ring Uniform Size Number
-912
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/4 in
Specifications Connection 2 Type
Male SAE
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Elbow
Category 6
Griplok® Tube Fittings
