SSP Corp. Griplok Bulkhead Male Connector
SSP Corp. Griplok Bulkhead Male Connector
SKU:SSP-751bfe
Premium brass Bulkhead Male Connector - 1/2 Tube x 3/8-18 MNPT. Ideal for instrumentation fittings.
Regular price
$22.86
Regular price
Sale price
$22.86
Unit price
per
Initiate Order
SSP Corp. Griplok Bulkhead Male Connector
$22.86
Quantity: 1
Claim Your Seller Account
SSP Corp. Griplok Bulkhead Male Connector
$22.86
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

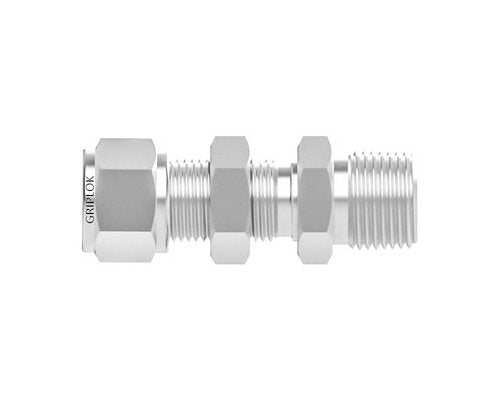

The SSP Corp. Griplok Bulkhead Male Connector is expertly crafted from durable brass, ensuring reliable performance in demanding environments. This fitting features a 1/2 inch Tube Fitting connection on one end and a 3/8-18 MNPT connection on the other, ideal for secure installations. Its bulkhead design guarantees a tight seal and precise alignment, making it perfect for instrumentation applications. With dimensions meeting strict industry standards and a solid construction, this connector delivers unmatched quality and longevity.
Product Specifications

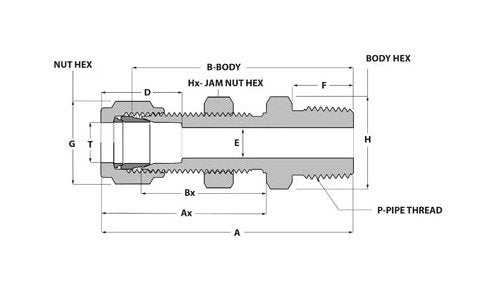

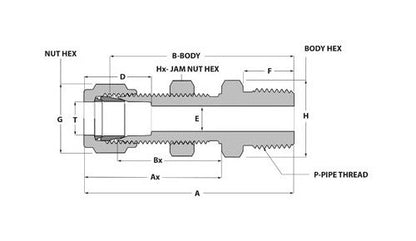

Dimensions A
2.56 in
Dimensions Ax
1.65 in
Dimensions B
2.09 in
Dimensions Bx
1.25 in
Dimensions D
0.97 in
Dimensions E
0.37 in
Dimensions F
0.56 in
Dimensions G
7/8 in
Dimensions H
15/16 in
Dimensions Hx
15/16 in
Dimensions Maximum Panel Thickness
0.50 in
Dimensions P
3/8 in
Dimensions Panel Hole Drill Size
49/64 in
Dimensions T
1/2 in
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/2 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/8 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
22.86 USD
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
