SSP Corp. Griplok Bulkhead Male Connector
SSP Corp. Griplok Bulkhead Male Connector
SKU:SSP-aa59b2
High-quality 316 SS Bulkhead Male Connector, 1/8 Tube Fitting x 1/8-27 MNPT, for secure and leak-free connections in fluid systems.
Regular price
$27.70
Regular price
Sale price
$27.70
Unit price
per
Initiate Order
SSP Corp. Griplok Bulkhead Male Connector
$27.70
Quantity: 1
Claim Your Seller Account
SSP Corp. Griplok Bulkhead Male Connector
$27.70
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

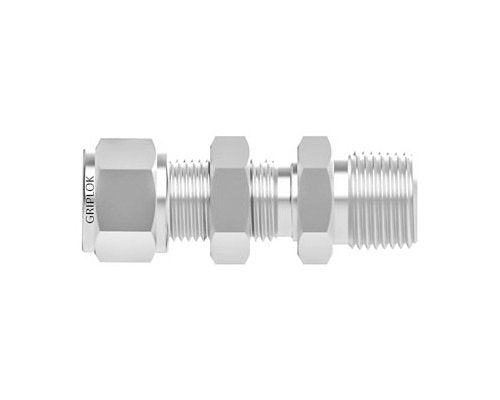

The SSP Corp. Griplok Bulkhead Male Connector is a premium 316 SS tube fitting designed for durability and secure connections. With a 1/8 in Tube Fitting x 1/8-27 MNPT configuration, this straight bulkhead connector ensures a leak-free connection. The Griplok design offers easy installation, perfect for instrumentation tube fittings. Its compact dimensions and sturdy construction make it ideal for various industrial applications, providing reliability and efficiency in fluid systems.

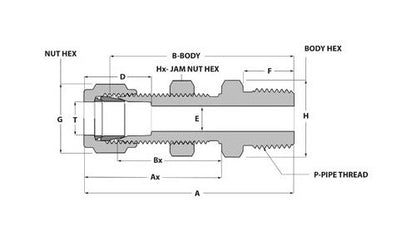

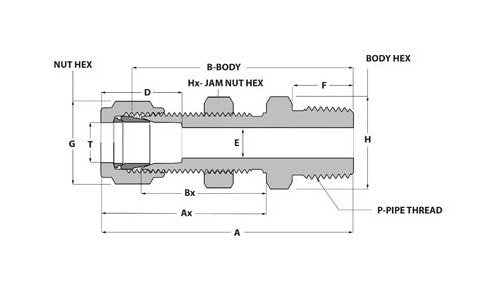

Product Specifications
Dimensions A
1.89 in
Dimensions Ax
1.23 in
Dimensions B
1.57 in
Dimensions Bx
0.97 in
Dimensions D
0.56 in
Dimensions E
0.09 in
Dimensions F
0.38 in
Dimensions G
7/16 in
Dimensions H
1/2 in
Dimensions Hx
1/2 in
Dimensions Maximum Panel Thickness
0.50 in
Dimensions P
1/8 in
Dimensions Panel Hole Drill Size
21/64 in
Dimensions T
1/8 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
27.7 USD
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
