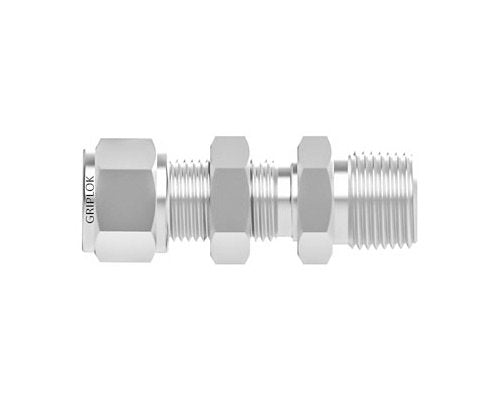

SSP Corp. Griplok Bulkhead Male Connector - 1/2 Tube Fitting x 1/2-14 MNPT, 316 SS
SSP Corp. Griplok Bulkhead Male Connector - 1/2 Tube Fitting x 1/2-14 MNPT, 316 SS
SKU:SSP-ec208f
High-quality SSP Corp. Griplok Bulkhead Male Connector - 1/2 Tube Fitting x 1/2-14 MNPT, 316 SS. Reliable, durable, and corrosion-resistant for industrial applications.
Regular price
$39.57
Regular price
Sale price
$39.57
Unit price
per
Initiate Order
SSP Corp. Griplok Bulkhead Male Connector - 1/2 Tube Fitting x 1/2-14 MNPT, 316 SS
$39.57
Quantity: 1
Claim Your Seller Account
SSP Corp. Griplok Bulkhead Male Connector - 1/2 Tube Fitting x 1/2-14 MNPT, 316 SS
$39.57
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SSP Corp. Griplok Bulkhead Male Connector is precision-engineered from high-quality 316 stainless steel, ensuring exceptional durability and corrosion resistance. This straight bulkhead connector features a 1/2 inch Tube Fitting on one end and a 1/2-14 MNPT on the other, ideal for secure and leak-free connections. With dimensions designed for easy installation and a maximum panel thickness of 0.50 inches, this fitting is perfect for a wide range of industrial applications. Compliant with stringent industry standards, including Federal/DoD procurement and NIST guidelines, this connector offers reliability and performance for both consumer and institutional buyers.

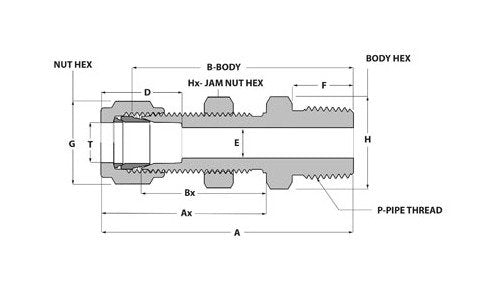

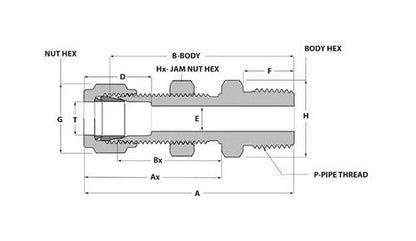

Product Specifications
Dimensions A
2.78 in
Dimensions Ax
1.65 in
Dimensions B
2.31 in
Dimensions Bx
1.25 in
Dimensions D
0.97 in
Dimensions E
0.41 in
Dimensions F
0.75 in
Dimensions G
7/8 in
Dimensions H
15/16 in
Dimensions Hx
15/16 in
Dimensions Maximum Panel Thickness
0.50 in
Dimensions P
1/2 in
Dimensions Panel Hole Drill Size
49/64 in
Dimensions T
1/2 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/2 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/2 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
39.57 USD
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
