SSP Corp. Griplok Bulkhead Tube Stub Adapter
SSP Corp. Griplok Bulkhead Tube Stub Adapter
SKU:SSP-3fcf91
Reliable SSP Corp. Griplok Bulkhead Tube Stub Adapter for secure fluid system connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SSP Corp. Griplok Bulkhead Tube Stub Adapter
$24.99
Quantity: 1
Claim Your Seller Account
SSP Corp. Griplok Bulkhead Tube Stub Adapter
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

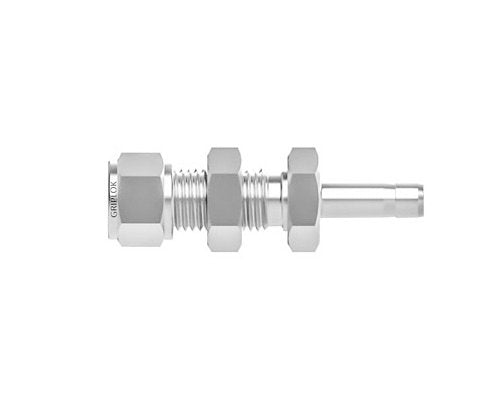

Enhance your fluid system with the SSP Corp. Griplok Bulkhead Tube Stub Adapter. Made from Alloy 400, this bulkhead adapter features a 1/8-inch Tube Fitting connecting to a 1/8-inch Tube Stub, ensuring secure and reliable connections. With dimensions meeting industry standards and a bulkhead design for added durability, this adapter is ideal for instrumentation applications requiring precision and performance.
Product Specifications

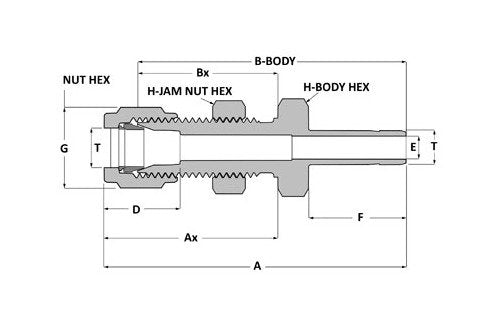

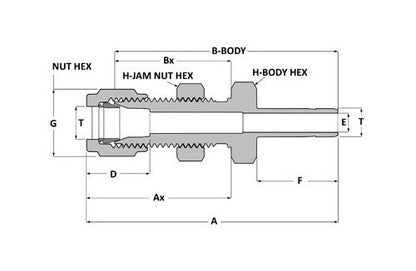

Dimensions A
2.01 in
Dimensions Ax
1.23 in
Dimensions B
1.69 in
Dimensions Bx
0.97 in
Dimensions D
0.56 in
Dimensions E
0.06 in
Dimensions F
0.53 in
Dimensions G
7/16 in
Dimensions H
1/2 in
Dimensions Maximum Panel Thickness
0.50 in
Dimensions Panel Hole Drill Size
21/64 in
Dimensions T
1/8 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
Tube Stub
Specifications End Connections
TF x Tube Stub
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
