SSP Corp. Griplok Bulkhead Tube Stub Adapter 1/2" Alloy 400
SSP Corp. Griplok Bulkhead Tube Stub Adapter 1/2" Alloy 400
SKU:SSP-2a196e
Enhance your instrumentation with the durable SSP Corp. Griplok Bulkhead Tube Stub Adapter 1/2" Alloy 400. Compliant with federal procurement standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SSP Corp. Griplok Bulkhead Tube Stub Adapter 1/2" Alloy 400
$29.99
Quantity: 1
Claim Your Seller Account
SSP Corp. Griplok Bulkhead Tube Stub Adapter 1/2" Alloy 400
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

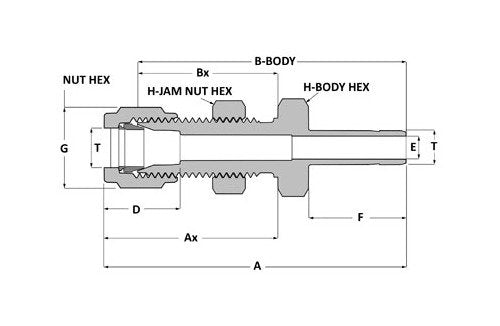

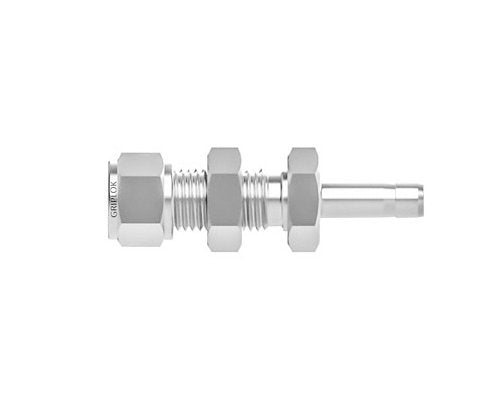

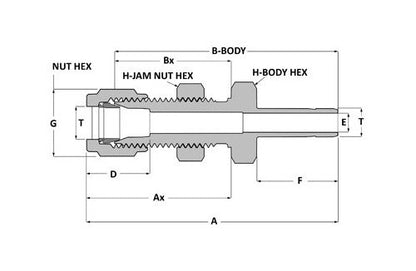

Upgrade your instrumentation set-up with the SSP Corp. Griplok Bulkhead Tube Stub Adapter. This straight-shaped adapter boasts a Body Material of Alloy 400, offering durability and corrosion resistance. With 1/2" TF x Tube Stub connections, it ensures a secure and leak-free fit. Measuring A: 2.94", B: 2.47", and T: 1/2", this adapter is designed for precise installations. Compliant with federal procurement standards, this adapter meets the stringent requirements for government and institutional use.
Product Specifications
Dimensions A
2.94 in
Dimensions Ax
1.65 in
Dimensions B
2.47 in
Dimensions Bx
1.25 in
Dimensions D
0.97 in
Dimensions E
0.33 in
Dimensions F
0.91 in
Dimensions G
7/8 in
Dimensions H
15/16 in
Dimensions Maximum Panel Thickness
0.50 in
Dimensions Panel Hole Drill Size
49/64 in
Dimensions T
1/2 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/2 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/2 in
Specifications Connection 2 Type
Tube Stub
Specifications End Connections
TF x Tube Stub
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
