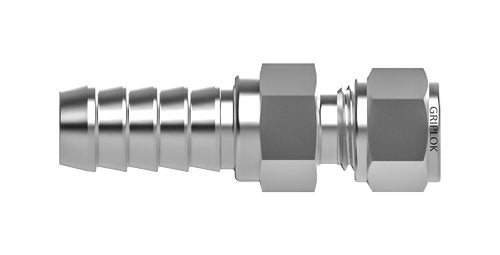

SSP Corp. Griplok Hose Barb Connector - 1/8 Tube x 1/8 Hose Barb, Alloy 400

Name: SSP Corp. Griplok Hose Barb Connector - 1/8 Tube x 1/8 Hose Barb, Alloy 400
Brand: Del Val Controls, Inc
SKU: SSP-538920
Price: 24.99 USD
Availability: OutOfStock

SKU:SSP-538920

Securely connect 1/8-inch tubing to hose barbs with the SSP Corp. Griplok Hose Barb Connector in Alloy 400.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SSP Corp. Griplok Hose Barb Connector offers a reliable connection solution for 1/8-inch tubing to 1/8-inch hose barbs with its Alloy 400 construction. Designed for a temperature range of -15 to 350 °F, this straight connector ensures secure fittings with its TF x Hose Barb end connection. Its compact dimensions and high-quality material make it ideal for instrumentation applications, providing durability and efficiency. This connector complies with stringent industry standards, making it a trusted choice for various institutional and government procurement needs.

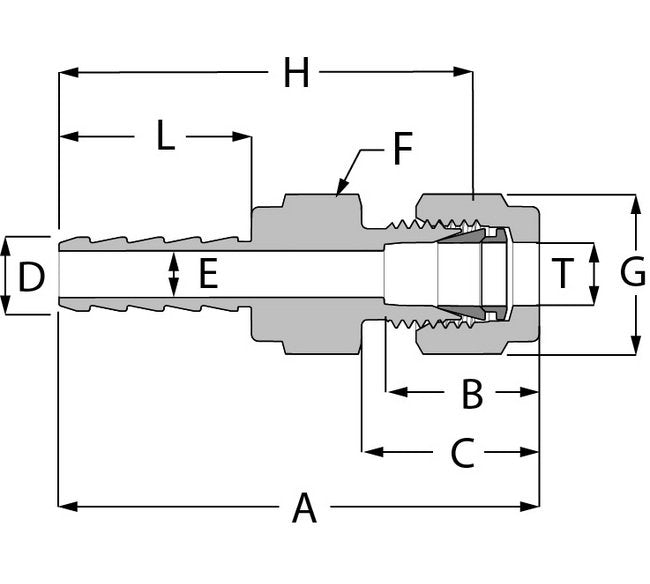

Product Specifications

Dimensions A

1.46 in

Dimensions B

0.56 in

Dimensions C

0.66 in

Dimensions D

0.15 in

Dimensions E

0.08 in

Dimensions F Hex Flat

7/16 in

Dimensions G

7/16 in

Dimensions H

1.17 in

Dimensions L

0.40 in

Dimensions T

1/8 in

Specifications Body Material

Alloy 400

Specifications Brand Series

Griplok

Specifications Connection 1 Size

1/8 in

Specifications Connection 1 Type

Tube Fitting

Specifications Connection 2 Size

1/8 in

Specifications Connection 2 Type

Hose Barb (Hose ID)

Specifications End Connections

TF x Hose Barb (Hose ID)

Specifications Handle Color

Specifications Handle Type

Specifications Hose Id

1/8 in

Specifications Production Category

Specifications Shape

Straight

Specifications Temperature

-15 to 350 ÂºF
