SSP Corp. Griplok Hose Barb Connector - Brass, 1/8 in Tube x 1/8 in Hose Barb
SSP Corp. Griplok Hose Barb Connector - Brass, 1/8 in Tube x 1/8 in Hose Barb
SKU:SSP-2a1a66
SSP Corp. Griplok Hose Barb Connector - Brass, 1/8 Tube x 1/8 Hose Barb - Reliable, leak-free connections for diverse applications.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
SSP Corp. Griplok Hose Barb Connector - Brass, 1/8 in Tube x 1/8 in Hose Barb
$14.99
Quantity: 1
Claim Your Seller Account
SSP Corp. Griplok Hose Barb Connector - Brass, 1/8 in Tube x 1/8 in Hose Barb
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SSP Corp. Griplok Hose Barb Connector features a Brass body with straight shape and precise 1/8-inch Tube Fitting x 1/8-inch Hose Barb connections. With a wide temperature range of -15 to 350 °F, this connector ensures secure and leak-free fittings for various applications. Its compact design, high-quality materials, and compatibility with industry-standard tubing make it a reliable choice for fluid systems needing dependable connections.

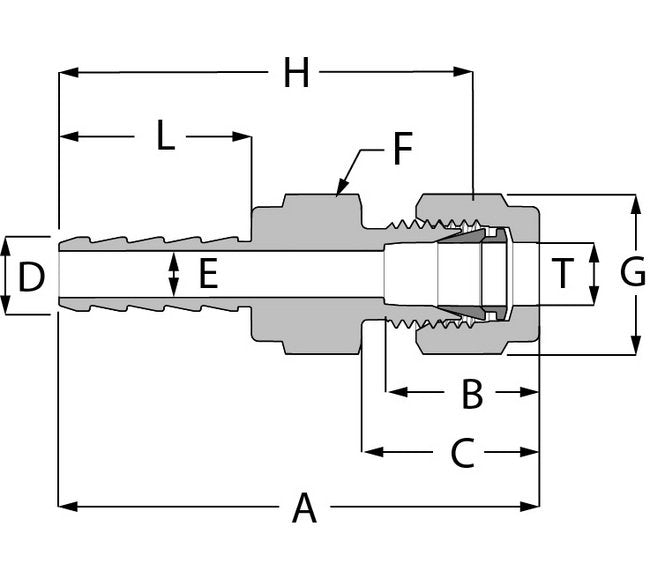

Product Specifications
Dimensions A
1.46 in
Dimensions B
0.56 in
Dimensions C
0.66 in
Dimensions D
0.15 in
Dimensions E
0.08 in
Dimensions F Hex Flat
7/16 in
Dimensions G
7/16 in
Dimensions H
1.17 in
Dimensions L
0.40 in
Dimensions T
1/8 in
Specifications Body Material
Brass
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
Hose Barb (Hose ID)
Specifications End Connections
TF x Hose Barb (Hose ID)
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Hose Id
1/8 in
Specifications Production Category
4
Specifications Shape
Straight
Specifications Temperature
-15 to 350 ºF
Category 6
Griplok® Tube Fittings
