SSP Corp. Griplok Male Connector SAE - 1/8 Tube x 5/16-24 SAE, 316 SS
SSP Corp. Griplok Male Connector SAE - 1/8 Tube x 5/16-24 SAE, 316 SS
SKU:SSP-db946b
Reliable SSP Corp. Griplok Male Connector SAE - 1/8 Tube x 5/16-24 SAE, 316 SS for precise and durable connections in instrumentation fittings.
Regular price
$13.38
Regular price
Sale price
$13.38
Unit price
per
Initiate Order
SSP Corp. Griplok Male Connector SAE - 1/8 Tube x 5/16-24 SAE, 316 SS
$13.38
Quantity: 1
Claim Your Seller Account
SSP Corp. Griplok Male Connector SAE - 1/8 Tube x 5/16-24 SAE, 316 SS
$13.38
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

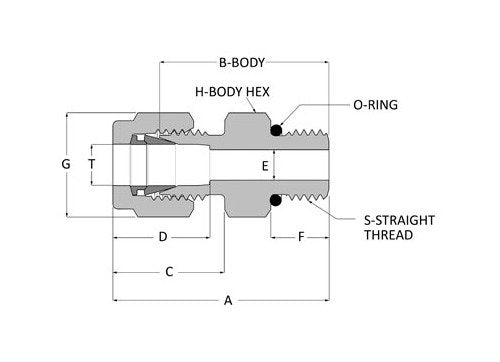

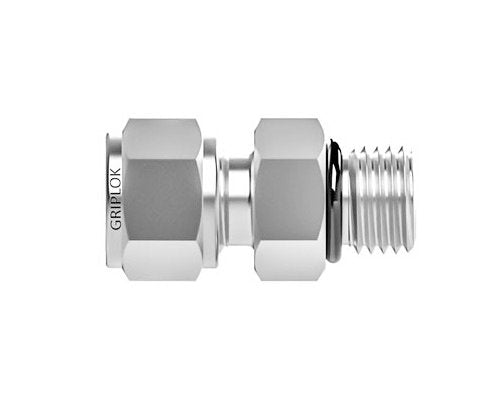

The SSP Corp. Griplok Male Connector SAE offers a reliable connection with its 1/8-inch tube fitting matched with a 5/16-24 male SAE interface, both crafted from high-quality 316 stainless steel. This straight-shaped connector ensures a secure fit, with dimensions A: 1.24 in, C: 0.66 in, E: 0.09 in, F: 0.30 in, G & H: 7/16 in, T: 1/8 in, B: 0.92 in, S: 5/16-24. Suitable for instrumentation tube fittings, this connector is designed for durability and precision, meeting stringent industry standards for performance and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions A
1.24 in
Dimensions B
0.92 in
Dimensions C
0.66 in
Dimensions E
0.09 in
Dimensions F
0.30 in
Dimensions G
7/16 in
Dimensions H
7/16 in
Dimensions S
5/16-24
Dimensions T
1/8 in
Specifications As568 O Ring Uniform Size Number
-902
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
Male SAE
Specifications End Connections
TF x Male SAE
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
13.38 USD
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
