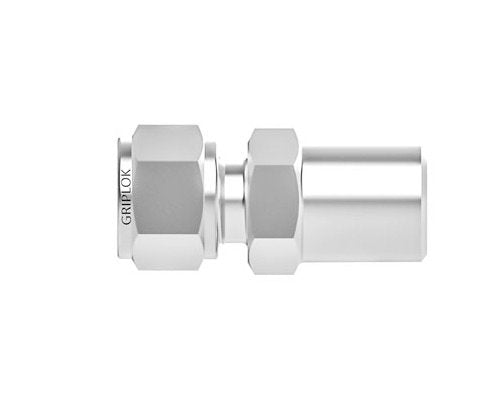

SSP Corp. Griplok Male Pipe Weld Connector
SSP Corp. Griplok Male Pipe Weld Connector
SKU:SSP-afb7f0
Premium 1/4 Tube Fitting x 1/4 Pipe Stub Connector, 316 SS, Straight Shape, Reliable & Leak-Free
Regular price
$11.07
Regular price
Sale price
$11.07
Unit price
per
Initiate Order
SSP Corp. Griplok Male Pipe Weld Connector
$11.07
Quantity: 1
Claim Your Seller Account
SSP Corp. Griplok Male Pipe Weld Connector
$11.07
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SSP Corp. Griplok Male Pipe Weld Connector is a premium 1/4 Tube Fitting x 1/4 Pipe Stub made of high-quality 316 SS material. Engineered for precision and durability, this straight-shaped connector ensures a secure and leak-free connection. With dimensions meeting stringent industry standards, it offers easy installation and long-term reliability, making it ideal for industrial applications requiring precision instrumentation. Trust in the Griplok series for top-notch quality and performance.
Product Specifications

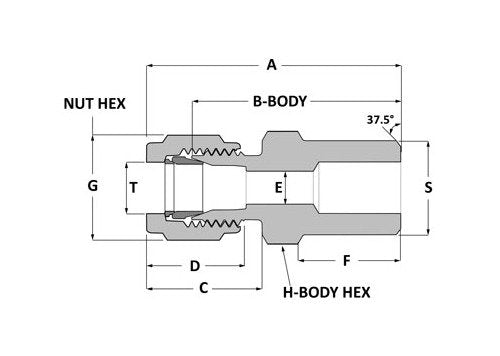

Dimensions A
1.53 in
Dimensions B
1.20 in
Dimensions C
0.74 in
Dimensions D
0.64 in
Dimensions E
0.19 in
Dimensions F
0.56 in
Dimensions G
9/16 in
Dimensions H
9/16 in
Dimensions Pipe Od
0.540 in
Dimensions S
0.54 in
Dimensions T
1/4 in
Dimensions Tube Id
1/4 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Pipe Stub
Specifications End Connections
TF x Pipe Stub
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
11.07 USD
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
