SSP Corp. Griplok Male Pipe Weld Connector 316 SS, 1/2 Tube x 3/4 Pipe Stub
SSP Corp. Griplok Male Pipe Weld Connector 316 SS, 1/2 Tube x 3/4 Pipe Stub
SKU:SSP-dfa55f
High-grade SSP Corp. Griplok Male Pipe Weld Connector for reliable tube-to-pipe connections. 316 SS, 1/2 Tube x 3/4 Pipe Stub.
Regular price
$35.68
Regular price
Sale price
$35.68
Unit price
per
Initiate Order
SSP Corp. Griplok Male Pipe Weld Connector 316 SS, 1/2 Tube x 3/4 Pipe Stub
$35.68
Quantity: 1
Claim Your Seller Account
SSP Corp. Griplok Male Pipe Weld Connector 316 SS, 1/2 Tube x 3/4 Pipe Stub
$35.68
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SSP Corp. Griplok Male Pipe Weld Connector is a top-tier solution designed for seamless tube-to-pipe connections. Crafted from high-quality 316 stainless steel, this connector ensures durability and corrosion resistance. With a Connection 1 size of 1/2 in and Connection 2 size of 3/4 in, it offers a precise fit. The straight shape and Griplok design guarantee a secure and leak-free connection, meeting the stringent requirements of both consumer and institutional users.

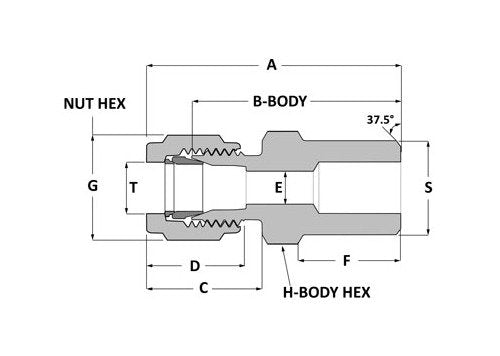

Product Specifications
Dimensions A
2.06 in
Dimensions B
1.59 in
Dimensions C
0.93 in
Dimensions D
0.97 in
Dimensions E
0.41 in
Dimensions F
0.75 in
Dimensions G
7/8 in
Dimensions H
1 1/16 in
Dimensions Pipe Od
1.05 in
Dimensions S
1.050 in
Dimensions T
1/2 in
Dimensions Tube Id
1/2 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/2 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/4 in
Specifications Connection 2 Type
Pipe Stub
Specifications End Connections
TF x Pipe Stub
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
35.68 USD
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
