SSP Corp. Griplok Male Pipe Weld Connector - Alloy 400, 1/2 in TF x 1/2 in Pipe Stub

Name: SSP Corp. Griplok Male Pipe Weld Connector - Alloy 400, 1/2 in TF x 1/2 in Pipe Stub
Brand: Del Val Controls, Inc
SKU: SSP-d112fe
Price: 34.99 USD
Availability: OutOfStock

SKU:SSP-d112fe

Secure and durable Griplok Male Pipe Weld Connector by SSP Corp. in Alloy 400, 1/2 in TF x 1/2 in Pipe Stub. Industry-standard dimensions ensure top performance.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

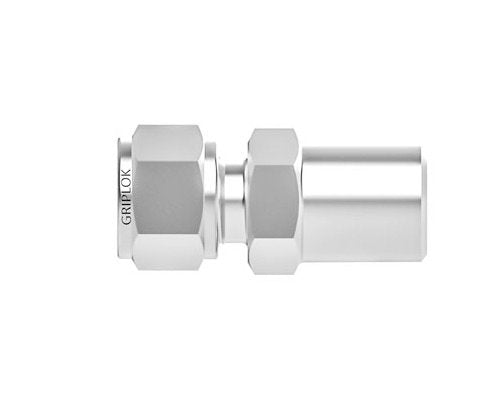

The SSP Corp. Griplok Male Pipe Weld Connector in Alloy 400 is a top-notch instrumentation tube fitting designed for precision and durability. This straight connector features a 1/2 in Tube Fitting x 1/2 in Pipe Stub configuration, ensuring a secure and leak-free connection. With dimensions meeting industry standards, including a 0.840 in Pipe OD and 1/2 in Tube ID, this connector guarantees optimal performance in diverse applications. Trust in the Griplok series for reliability and efficiency in your piping systems.

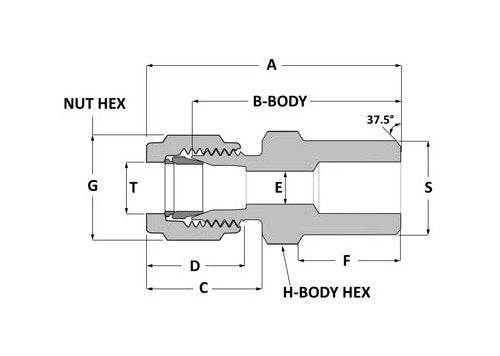

Product Specifications

Dimensions A

2.00 in

Dimensions B

1.53 in

Dimensions C

0.93 in

Dimensions D

0.97 in

Dimensions E

0.41 in

Dimensions F

0.75 in

Dimensions G

7/8 in

Dimensions H

7/8 in

Dimensions Pipe Od

0.840 in

Dimensions S

0.84 in

Dimensions T

1/2 in

Dimensions Tube Id

1/2 in

Specifications Body Material

Alloy 400

Specifications Brand Series

Griplok

Specifications Connection 1 Size

1/2 in

Specifications Connection 1 Type

Tube Fitting

Specifications Connection 2 Size

1/2 in

Specifications Connection 2 Type

Pipe Stub

Specifications End Connections

TF x Pipe Stub

Specifications Handle Color

Specifications Handle Type

Specifications Production Category

Specifications Shape

Straight

Category 6

Griplok® Tube Fittings

SSP Corp. Griplok Male Pipe Weld Connector - Alloy 400, 1/2 in TF x 1/2 in Pipe Stub
