SSP Corp. Unilok Female Connector - Alloy 400 - 1/4 in Tube Fitting x 1/4-18 FNPT
SSP Corp. Unilok Female Connector - Alloy 400 - 1/4 in Tube Fitting x 1/4-18 FNPT
SKU:HEM-e6340e
Reliable Unilok Female Connector with Alloy 400 body, 1/4 in Tube Fitting x 1/4-18 FNPT connections
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SSP Corp. Unilok Female Connector - Alloy 400 - 1/4 in Tube Fitting x 1/4-18 FNPT
$29.99
Quantity: 1
Claim Your Seller Account
SSP Corp. Unilok Female Connector - Alloy 400 - 1/4 in Tube Fitting x 1/4-18 FNPT
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SSP Corp. Unilok Female Connector features a durable Alloy 400 body, ensuring corrosion resistance for reliable performance. This straight connector with 1/4 in Tube Fitting x 1/4-18 FNPT connections offers seamless compatibility and precision. With dimensions meeting industry standards, this connector guarantees a secure and leak-free connection, making it ideal for instrumentation applications.
Product Specifications
Attributesoptions Attributesoptions
Meet or exceed the MIL-STD-188-125-1 requirementsInductive InputChoice of Termination ConfigurationsQuick Disconnect Terminal TabsThreaded StudsConnectorsCan be supplied with HEMP Protection ModulesSupplied with Certified PCI data upon requestExisting Designs for:Other Power Lines (Intersite)Audio/Data Lines (Intersite)Control/Signal Lines (Intersite)Existing Applications include:AC/DC powerTelephone LinesAnalog Fire AlarmsServo MotorsSynchro TransmitterCustom tailoring for your unique application
Electrical Ratings Current
2 A
Electrical Ratings Dcr
⤠0.3 Ω
Electrical Ratings Dwv Dc
200 V
Electrical Ratings Frequency
DC-60 Hertz
Electrical Ratings Mil Std 220 Insertion Loss Limit
100 dB Minimum from 14 kHz through 10 GHz
Electrical Ratings Voltage Peak
50
Electrical Ratings Voltage Vrms
35
Pci Hemp Parameters Common Mode Peak Short Circuit Current
5000 A
Pci Hemp Parameters Common Mode Residual Peak Current
⤠0.1 A
Pci Hemp Parameters Common Mode Source Impedance
⥠60 Ω
Pci Hemp Parameters Type
Short Pulse
Pci Hemp Parameters Type Of Injection
Common Mode | Wire-to-ground
Pci Hemp Parameters Wire To Ground Load Impedance
2 Ω
Pci Hemp Parameters Wire To Ground Peak Short Circuit Current
2500 A
Pci Hemp Parameters Wire To Ground Residual Peak Current
⤠0.1 A
Pci Hemp Parameters Wire To Ground Source Impedance
⥠60 Ω
Specifications Corrosion
Hermetically sealed steel or aluminum enclosures with tin-lead plating

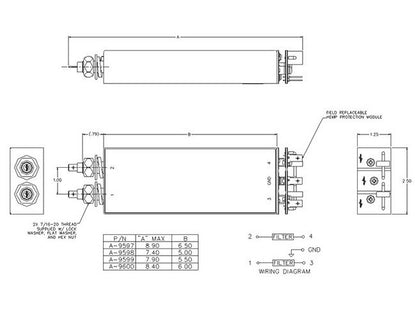

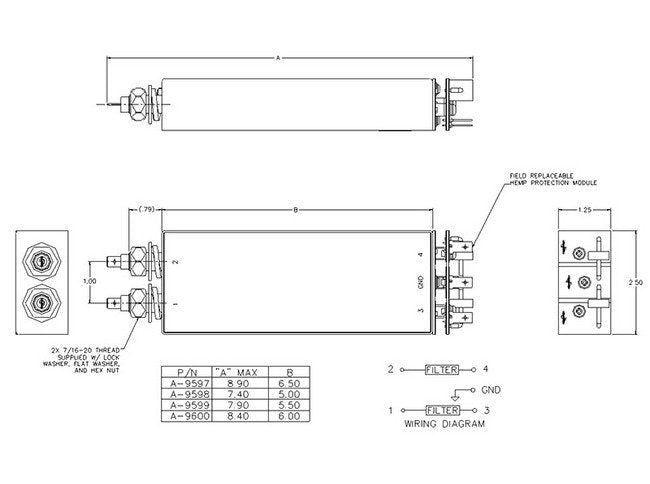

Specifications Dimension B
6.50 in
Specifications Fungus
Non-nutritive materials are used
Specifications Humidity
10 to 90 %
Specifications Maximum Altitude
15000 ft
Specifications Maximum Dimension A
8.90 in
Specifications Note
With HEMP protection devices removed.Full load from 100 KHz to 20 MHz.
Specifications Operating Temperature
-40 to +71 ºC
Specifications Storage Temperature
-55 to +105 ºC
Specifications Voltage
0 to 480 V
