SSP Corp. Unilok Female Connector Brass 1/2 TF x 3/4-14 FNPT
SSP Corp. Unilok Female Connector Brass 1/2 TF x 3/4-14 FNPT
SKU:HEM-381cff
High-quality brass female connector with 1/2 TF x 3/4-14 FNPT for secure and leak-free connections in instrumentation applications.
Regular price
$16.88
Regular price
Sale price
$16.88
Unit price
per
Initiate Order
SSP Corp. Unilok Female Connector Brass 1/2 TF x 3/4-14 FNPT
$16.88
Quantity: 1
Claim Your Seller Account
SSP Corp. Unilok Female Connector Brass 1/2 TF x 3/4-14 FNPT
$16.88
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SSP Corp. Unilok Female Connector features high-quality brass construction, ensuring durability and reliability. With a 1/2-inch Tube Fitting on one end and a 3/4-14 FNPT on the other, this connector offers a secure and leak-free connection. Its straight shape and precise dimensions make installation easy. Ideal for instrumentation applications, this connector meets rigorous industry standards for performance and safety.
Product Specifications

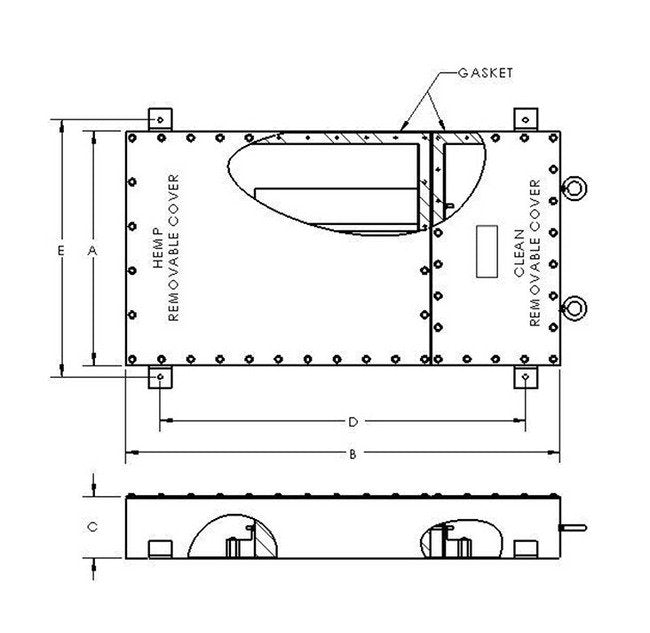

Dimensions Dimension A
22.0 in
Dimensions Dimension B
40.0 in
Dimensions Dimension C
9.0 in
Dimensions Dimension D
34.0 in
Dimensions Dimension E
24.0 in
Enclosure Enclosure
Modified NEMA 1 type enclosureCabinets: Stainless steel constructionStand alone filters and inserts: Cold rolled steel construction with a corrosion resistant platingEpoxy paint optionalShielding effectiveness on clean side greater than 100 dB from 14 kHz to 10 GHzDual removable access covers.
Features Features
Inductive inputIndividually Filtered LinesSurge arrestors V481BA60 includedCustom options available
Note Note
Specifications subject to change.
Specifications Compliance
MIL-STD-188-125-1 | MIL-STD-188-125-2
Specifications Current
100 A
Specifications Dielectric Withstanding Voltage
2250 VDC Line-to-Chassis Per MIL-STD-202, Method 301 Prior to Surge Arrestor and Discharge Resistor Installation
Specifications Estimated Weight
220 lb
Specifications Frequency
60 Hz
Specifications High Altitude Electromagnetic Pulse Hemp Complian
Per MIL-STD-188-125-1 and MIL-STD-188-125-2 as Power Line (Intrasite) Point of Entry Filter for Short (E1) and Intermediate (E2) Pulses.

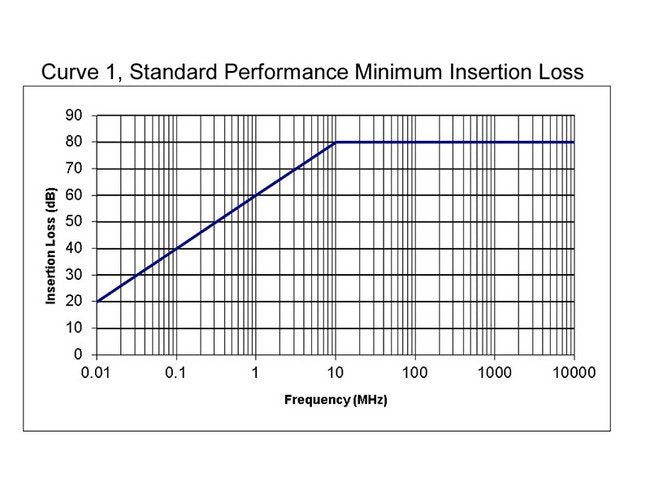

Specifications Insertion Loss Curve
Curve 1, Standard Performance Minimum Insertion Loss
Specifications Insulation Resistance
Per MIL-PRF-15733, prior to discharge resistor installation.
Specifications Leakage Current
< 10% of Rated Current 10 through 150 Amperes, < 1 Amp for 5 Amp Filters
Specifications Minimum Insertion Loss
20 dB @ 10 kHz | 40 dB @ 100 kHz | 60 dB @ 1 MHz | 80 dB @ 10 MHz to 10 GHz
Specifications Number Of Circuits
3
Specifications Operating Temperature
-40 to +65 °C
Specifications Storage Temperature
-55 to +105 °C
Specifications Voltage Discharge
Discharge to Less than 30 Volts within 30 s After Removal of Power
Specifications Voltage Drop
Less than 1% of rated voltage per paragraph 4.6.8 of MIL-PRF-15733
Specifications Voltage Rating Ac
277 V | 480 V
