SSP Duolok Alloy 400 Back Ferrule - 1 1/4 in. Tube Fitting
SSP Duolok Alloy 400 Back Ferrule - 1 1/4 in. Tube Fitting
SKU:HIG-8b6e28
Enhance tube connections with SSP Duolok Alloy 400 Back Ferrule - 1 1/4 in. for secure, leak-free performance in industrial settings.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SSP Duolok Alloy 400 Back Ferrule - 1 1/4 in. Tube Fitting
$29.99
Quantity: 1
Claim Your Seller Account
SSP Duolok Alloy 400 Back Ferrule - 1 1/4 in. Tube Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your tubing connections with the SSP Duolok Alloy 400 Back Ferrule. This precision-engineered back ferrule, designed for 1 1/4-inch fittings, ensures leak-free performance and superior durability. Crafted with high-quality Alloy 400 material, this fitting is ideal for demanding industrial applications. Meet your instrumentation tube fitting needs with confidence and reliability.
Ready to Grow Without Cash Flow Constraints?

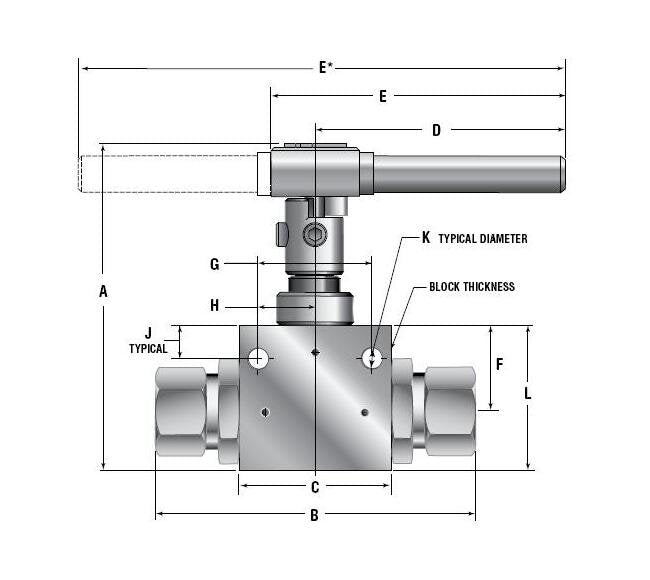

Product Specifications
Specifications A Height
4.97 in | 126.24 mm
Specifications A Panel Mounting Dimension
2.00 in | 50.80 mm
Specifications Block Thickness
1.38 in | 35.05 mm
Specifications B Length
5.53 in | 140.46 mm
Specifications B Panel Mounting Dimension
1.00 in | 25.40 mm
Specifications Connection Type
SF562CX20
Specifications C Panel Mounting Dimension
1.50 in | 38.10 mm
Specifications C Width
3.00 in | 76.20 mm
Specifications D Length
4.99 in | 126.75 mm
Specifications D Panel Mounting Dimension
0.28 in | 7.11 mm
Specifications End Connection Number
M9
Specifications E Length
5.52 in | 140.21 mm
Specifications F Height
1.38 in | 35.05 mm
Specifications G Spacing Of Holes
2.00 in | 50.80 mm
Specifications H Dimension
1 in | 25.40 mm
Specifications J Dimension
0.41 in | 10.41 mm
Specifications K Diameter
0.28 in | 7.11 mm
Specifications L Height
2.50 in | 63.50 mm
Specifications Mawp At Room Temperature
20000 psi | 1379 bar
Specifications Minimum Orifice
0.312 in | 7.92 mm
Specifications Orifice
3/8 in
Specifications Seat Gland Hex
1.38 in | 35.05 mm
Valve Maintenance 0
Repair Kits: add âRâ to the front of valve catalog first 4 numbers for proper repair kit. (Example: R2B6S) Consult your Autoclave representative for pricing on repair kits. Refer to the Operation and Maintenance manual for proper maintenance procedures.
Valve Options 0
Pneumatic Actuator AO - Air-to-open/spring to close AC - Air-to-close/spring to open AOC - Air-to-open-and-close (double action) Electric Actuator EO1 - 20 volt AC 50/60 Hz EO2 - 220 volt AC 50/60 Hz EO3 - 24 VDC Actuator Operating Temperature: Pneumatic: -20°F to 175°F (-29°C to 79°C) Electric: -20°F to 160°F (-29°C to 71°C) High Temperature Option: HT - for media temperature up to 500°F (260°C) See ball valve actuator section for full description, additional information, and options.
