SSP Duolok Alloy 400 Tube Fitting Front Ferrule, 22mm
SSP Duolok Alloy 400 Tube Fitting Front Ferrule, 22mm
SKU:SOU-bba391
SSP Duolok Alloy 400 Tube Fitting Front Ferrule, 22mm - Reliable, durable, and precise tube fitting for instrumentation needs.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SSP Duolok Alloy 400 Tube Fitting Front Ferrule, 22mm
$24.99
Quantity: 1
Claim Your Seller Account
SSP Duolok Alloy 400 Tube Fitting Front Ferrule, 22mm
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SSP Duolok Tube Fitting Front Ferrule in Alloy 400 with a 22mm size is designed for precision and reliability in instrumentation tube fittings. Crafted for durability, it ensures a secure connection, meeting stringent industry standards, and enhancing operational efficiency. Ideal for industrial applications requiring high-performance tube fittings.

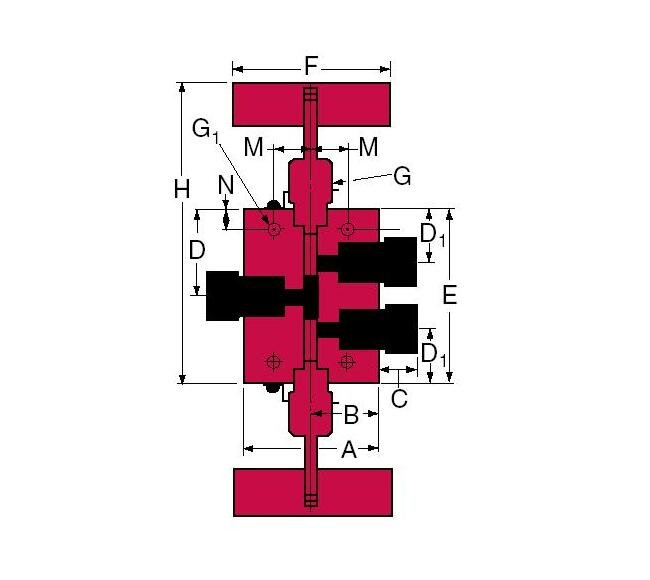

Product Specifications
Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C
Specifications C Length
0.72 in | 18.29 mm
Specifications D1 Height
1.31 in | 33.27 mm
Specifications D Height
2.06 in | 52.32 mm
Specifications E Height
4.12 in | 104.65 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
6.37 in | 161.80 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.078 in | 1.98 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.14
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
3-Way / 2-Stem Manifold
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R60VM4071-SOGWO)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found in the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.Note: All sour service valves and fittings supplied without collars and glands unless otherwise specified.
