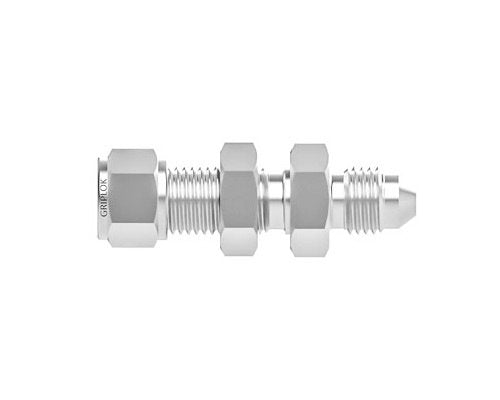

SSP Griplok AN Bulkhead Union - 1/2 Tube x 1/2 Male AN, 316 SS
SSP Griplok AN Bulkhead Union - 1/2 Tube x 1/2 Male AN, 316 SS
SKU:SSP-0eddb7
SSP Griplok AN Bulkhead Union - Secure 1/2 Tube to 1/2 Male AN fitting, 316 SS, durable & precise for instrumentation needs.
Regular price
$47.81
Regular price
Sale price
$47.81
Unit price
per
Initiate Order
SSP Griplok AN Bulkhead Union - 1/2 Tube x 1/2 Male AN, 316 SS
$47.81
Quantity: 1
Claim Your Seller Account
SSP Griplok AN Bulkhead Union - 1/2 Tube x 1/2 Male AN, 316 SS
$47.81
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SSP Griplok AN Bulkhead Union provides a secure and reliable connection for 1/2-inch tubing to a 1/2-inch Male AN fitting. Made from high-quality 316 stainless steel, this bulkhead union is designed for durability in demanding environments. Its Griplok design ensures a tight seal, and the straight shape with a bulkhead specialty adds to its versatility. With precise dimensions meeting industry standards, including a maximum panel thickness of 0.50 inches, this fitting is ideal for instrumentation setups requiring a robust and leak-free connection.
Ready to Grow Without Cash Flow Constraints?

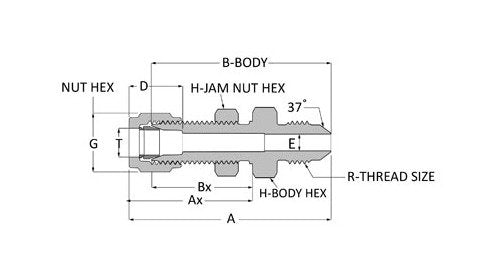

Product Specifications
Dimensions A
2.66 in
Dimensions Ax
1.65 in
Dimensions B
2.19 in
Dimensions Bx
1.25 in
Dimensions D
0.97 in
Dimensions E
0.39 in
Dimensions G
7/8 in
Dimensions H
15/16 in
Dimensions Maximum Panel Thickness
0.50 in
Dimensions Panel Hole Drill Size
49/64 in
Dimensions R
3/4-16 UNJF-3
Dimensions T
1/2 in
Specifications An Tube Flare Size
1/2
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/2 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/2 in
Specifications Connection 2 Type
Male AN
Specifications End Connections
TF x Male AN
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
47.81 USD
Specifications Production Category
1
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
