SSP Griplok Bulkhead Female Connector - Alloy C-276, 1/2 TF x 3/8 FNPT

SSP Griplok Bulkhead Female Connector - Alloy C-276, 1/2 TF x 3/8 FNPT

SSP-2ecc73

High-quality Griplok Bulkhead Female Connector in Alloy C-276, 1/2 TF x 3/8 FNPT for reliable instrumentation connections.

$42.99
$42.99
Sale

Initiate Order

SSP Griplok Bulkhead Female Connector - Alloy C-276, 1/2 TF x 3/8 FNPT

SSP Griplok Bulkhead Female Connector - Alloy C-276, 1/2 TF x 3/8 FNPT

$42.99

Quantity: 1

Claim Your Seller Account

SSP Griplok Bulkhead Female Connector - Alloy C-276, 1/2 TF x 3/8 FNPT

SSP Griplok Bulkhead Female Connector - Alloy C-276, 1/2 TF x 3/8 FNPT

$42.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The SSP Corp. Griplok Bulkhead Female Connector in Alloy C-276 is a premium solution for secure connections in instrumentation systems. This straight connector features a 1/2 inch Tube Fitting on one end and a 3/8 inch FNPT on the other, ensuring a reliable and leak-free interface. With a durable construction, precise dimensions, and a specialty Bulkhead design, this connector is ideal for high-pressure applications. Meet your system requirements with confidence using this meticulously engineered Griplok Connector.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

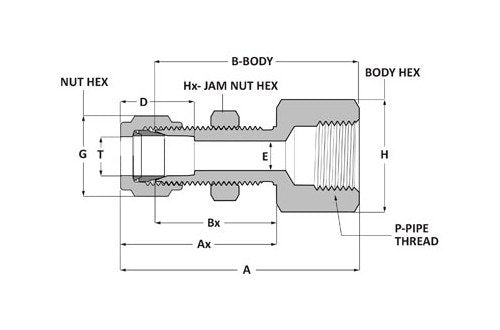

Dimensions A
2.50 in
Dimensions Ax
1.65 in
Dimensions B
2.03 in
Dimensions Bx
1.25 in
Dimensions D
0.97 in
Dimensions E
0.41 in
Dimensions G
7/8 in
Dimensions H
15/16 in
Dimensions Hx
15/16 in
Dimensions Maximum Panel Thickness
0.50 in
Dimensions P
3/8 in
Dimensions Panel Hole Drill Size
49/64 in
Dimensions T
1/2 in
Specifications Body Material
Alloy C-276
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/2 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
3/8 in
Specifications Connection 2 Type
FNPT
Specifications End Connections
TF x FNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
