SSP Griplok Hose Barb Connector - 1/8 Tube x 1/8 Hose Barb
SSP Griplok Hose Barb Connector - 1/8 Tube x 1/8 Hose Barb
SKU:SSP-ed5cbe
SSP Griplok Hose Barb Connector - Secure fluid connections in instrumentation applications with this 316 SS connector. 1/8 Tube x 1/8 Hose Barb.
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Initiate Order
SSP Griplok Hose Barb Connector - 1/8 Tube x 1/8 Hose Barb
$19.99
Quantity: 1
Claim Your Seller Account
SSP Griplok Hose Barb Connector - 1/8 Tube x 1/8 Hose Barb
$19.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

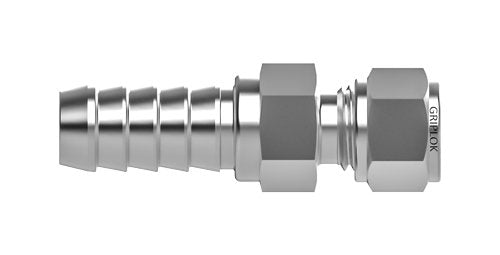

The SSP Griplok Hose Barb Connector is designed for secure fluid connections in demanding environments. Crafted from high-grade 316 SS, this straight connector boasts a 1/8 inch Tube Fitting and a 1/8 inch Hose Barb, ensuring a tight and reliable fit. With a temperature range of -15 to 350 °F, this connector excels in extreme conditions. Its precision dimensions and Griplok design guarantee leak-free performance, making it ideal for instrumentation applications.
Product Specifications

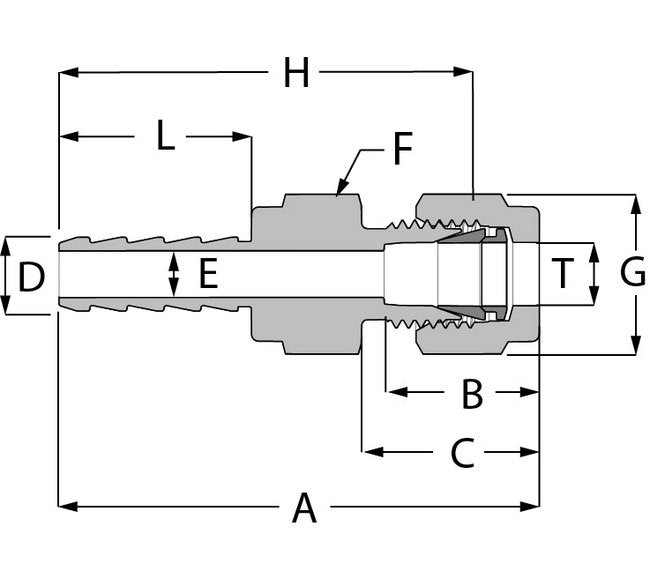

Dimensions A
1.46 in
Dimensions B
0.56 in
Dimensions C
0.66 in
Dimensions D
0.15 in
Dimensions E
0.08 in
Dimensions F Hex Flat
7/16 in
Dimensions G
7/16 in
Dimensions H
1.17 in
Dimensions L
0.40 in
Dimensions T
1/8 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
Hose Barb (Hose ID)
Specifications End Connections
TF x Hose Barb (Hose ID)
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Hose Id
1/8 in
Specifications Production Category
4
Specifications Shape
Straight
Specifications Temperature
-15 to 350 ºF
Category 6
Griplok® Tube Fittings
