SSP Unilok Female Connector - Alloy 400, 5/8 Tube x 1/2-14 FNPT
SSP Unilok Female Connector - Alloy 400, 5/8 Tube x 1/2-14 FNPT
SKU:HEM-e8526b
SSP Unilok Female Connector - Reliable Alloy 400 fitting for instrumentation tubes. 5/8 Tube x 1/2-14 FNPT.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SSP Unilok Female Connector - Alloy 400, 5/8 Tube x 1/2-14 FNPT
$24.99
Quantity: 1
Claim Your Seller Account
SSP Unilok Female Connector - Alloy 400, 5/8 Tube x 1/2-14 FNPT
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SSP Unilok Female Connector in Alloy 400 offers a robust connection solution with a 5/8 inch Tube Fitting on one end and a 1/2-14 FNPT on the other. Crafted for durability, it features precise dimensions (A: 1.84 in, B: 1.44 in) and meets stringent industry standards. The straight shape and TF x FNPT end connections ensure reliable performance in demanding environments, making it ideal for instrumentation use.
Product Specifications

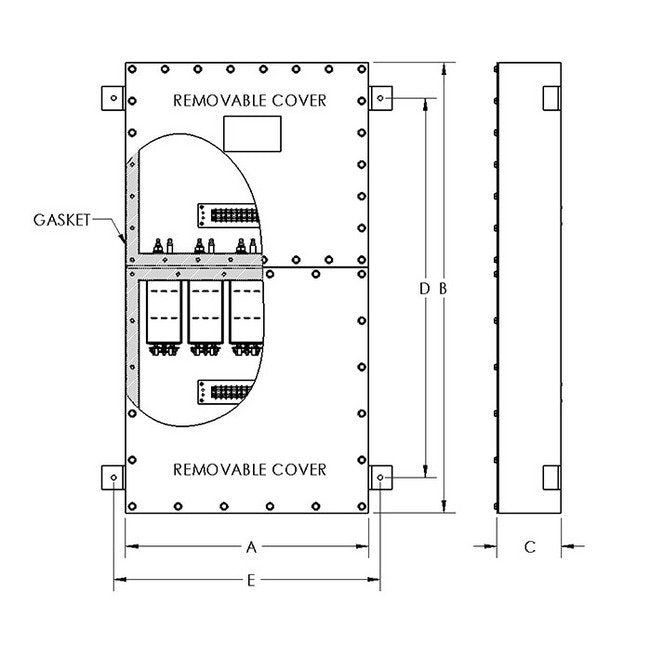

Dimensions Dimension A
9.50 in
Dimensions Dimension B
20.0 in
Dimensions Dimension C
5.75 in
Dimensions Dimension D
14.0 in
Dimensions Dimension E
11.5 in
Enclosure Enclosure
Modified NEMA 1 type enclosureStainless Steel constructionEpoxy paint optionalShielding Effectiveness on protected side greater than 100 dB up to 10 GHzSupplied with push pin terminal blocks or screw type terminal blocks Alternate mounting availableCaptor can supply just the cabinet or the cabinet with various filter inserts installed in accordance with your requirements
Filter Options Filter Options
Captor offers multiple filter inserts designed to meet MIL-188-125 HEMP requirementsA-10358, A-10366 are 2.00" x 3.00" filter inserts that will fit into the C-10431 cabinet
Note Note
Specifications subject to change.
Specifications Application
For Use with 2.00" x 3.00" Filter Inserts
Specifications Enclosure Standards
NEMA 1
Specifications Estimated Empty Cabinet Weight
25 lb
Specifications Maximum Number Of 2 Circuit Filter Inserts
4
